Product Details:
Place of Origin: Tianjin, China
Brand Name: New Yaan
Model Number: ZA-PT330-33ZTM50W
Contact Now
Detailed Product Description
Warranty: 5 Years Pixels: 4MP
Video Compression Format: H.265 Data Storage Options: SD Card
Customized Support: Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering Style: Ptz Camera
Function: Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio Special Features: Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens: 6.5-143mm IP Rating: Ip66
Sensor: CMOS, 1/2.8",CMOS Material: Aluminum Alloy
Viewing Angle: Horizontal: 360° Continuous Rotation; Vertical: +90°~ 90°, Optical Zoom 38 Times Product Name: Thermal Imaging Long Range Ptz Camera
Min. Illumination: Color : 0.01Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON ) Resolution: 1920 X 1080
NETD: ≤40

Recommend Products
Product Details
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 0
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 2
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 4
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 6
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 8
Product Paramenters
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 10
Features:
* The long range ptz camera enables 24/7 continuous monitoring at extended ranges, featuring a day camera with 2688 x 1520 resolution and ultra-low min. illumination (Color: 0.001Lux @(F1.5, AGC ON); B/W: 0.0005Lux @(F1.5, AGC ON)), plus a 640 x 512 resolution thermal camera, capturing delicate, smooth images for detailed observation .
* Equipped with 33X optical zoom and a 5.5-108mm focal length, the long range ptz camera excels at distant target capture; it supports smart functions like area intrusion detection, electronic defog, and 3D noise reduction, enhancing long-range monitoring efficiency .
* The integrated pan-tilt mechanism of the long range ptz camera allows 360° continuous pan rotation and -90°~+90° tilt, achieving complete omnidirectional coverage, with a horizontal rotation speed up to 60°/s for quick target tracking .
* Housed in an IP66-rated rugged enclosure, the long range ptz camera uses anti-corrosion materials and three-proof treatment, resisting salt fog (PH 6.5~7.2, 48-hour continuous spraying) and operating stably in -35℃~+65℃, making it ideal for harsh environments like marine areas .
* Featuring a double helical worm gear transmission structure, the long range ptz camera offers power-off self-locking, strong wind resistance, and high stability, with ±0.1° preset accuracy ensuring precise long-range positioning.

Customizable Laser Irradiator for long range ptz camera:
1.) The customizable laser irradiator for long range ptz camera adopts high-power laser light sources with strong penetration, enabling ultra-long-distance effective irradiation (500-3000 meters) to meet large-range monitoring needs .
2.) When integrated with the long range ptz camera's high-resolution day and thermal cameras, it achieves long-distance high-definition imaging with clear details, providing strong support for subsequent image analysis .
3.) Equipped with an intelligent control system, it supports remote control and automatic adjustment of beam angle and intensity, adapting to various long-range monitoring scenes seamlessly .
4.) Adopting efficient heat dissipation design and intelligent power management, it reduces power consumption and prolongs service life, perfectly matching the long range ptz camera's stable performance .
Model
ZA-PT330-33ZTM50W
Day Camera
Sensor
1/2.8”,CMOS
Resolution
2688 x 1520
Min. Illumination
Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )
Focal Length
5.5-108mm
Optical zoom
33X optical zoom
Other function
Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction
Thermal Camera
Resolution
640 x 512
Spatial range
17 um
NETD
≤40
Focal length
50mm
Focus mode
Auto/ manual
Temp. measurement range
-20℃-150℃ ( 20℃-350℃ optional )
Temp. measurement accuracy
±2℃ or ±2% ( take larger )
Pan tilt
Rotation Angle
Pan : 360° continuous rotation ;Tilt : -90° ~+ 90° ;
Rotation Speed
Pan : 0.01~60°/S ;Tilt : 0.01~30°/S ;
Preset Accuracy
±0.1°
Preset Position
200
Scan Mode
Cruise scan/auto scan
Angle Return
Support angle return by query command or real time angle return
Network
Video Compression
H.264 /H.265 /MPEG4 / MJPEG
Audio Compression
64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol
TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard
ONVIF, GB28181
Storage
Support SD card
General
Input Voltage
AC24V ±25% , 50/60Hz ; DC24V ±10%, ;
Power Consumption
100W
Working Temperature
-35℃~+65℃,
Humidity
<90%RH,
Waterproof
IP66
EMC
Power:4000V ; signal: 2000V ( line to ground 2000V, line to line 1000V )
Salt fog resistance
PH 6.5~7.2,continuous spraying 48 hours
Weight
15kg
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 12
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 14

The Importance of Thermal Sensitivity (NETD) for Thermal PTZ Cameras

When choosing a thermal PTZ camera, NETD (Noise Equivalent Temperature Difference) is crucial. Lower NETD values mean the camera detects smaller temperature differences, enhancing image clarity and performance in harsh weather. Here’s a quick quality guide:
* <25mK: Excellent
* <40mK: Very Good
* <50mK: Good
* <60mK: Acceptable
* <80mK: Satisfactory
Thermal PTZ cameras with lower NETD (<25mK) produce more grayscale tones, enabling sharper details and better analytics performance. Cameras above 60mK yield grainier images, limited detection range, and more false alarms.

While resolution (e.g., 640×480) matters, NETD differentiates performance. A 640×480 thermal PTZ camera with <25mK NETD outperforms the same resolution model with <60mK, delivering clearer imagery and faster, more accurate temperature detection.Prioritize low NETD for optimal security and resource management in your thermal PTZ camera system.
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 16

How to Choose a Thermal Security Camera

When selecting a thermal security camera, prioritize detector resolution and thermal sensitivity alongside cost and quality.
Detector Resolution determines image detail:
* Low: ≤160×120 (19,600 pixels)
* Medium: 320×240 (76,800 pixels)
* High: 640×480 (307,200 pixels)
Higher pixel density delivers sharper, more detailed imagery for effective surveillance.
Thermal Sensitivity measures the camera’s ability to detect minimal temperature differences (e.g., 0.05°C). Lower values enable clearer differentiation between hot and cold surfaces, crucial for accurate thermal imaging in security applications.
Also ensure the camera’s temperature range is suitable (e.g., -4°F to 2,192°F) and check for essential features:
* Customizable false color palettes (8-16 options)
* Infrared image saving with full temperature data
* Auto-focus (near/far) and auto-reconnection capabilities
Prioritizing these factors in your thermal security camera selection ensures optimal performance for perimeter monitoring, low-light environments, and reliable threat detection.
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 18
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 20
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 22
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 24
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 26
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 28
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera 30

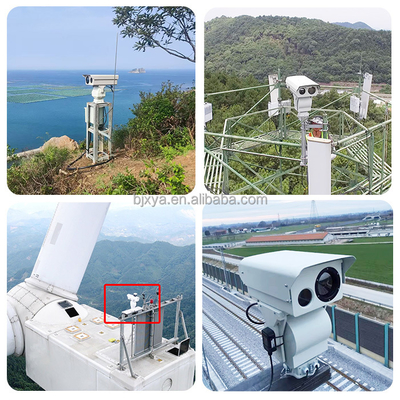

Application Areas
