Name: China Manufactured PTZ Camera 10km Long Range Thermal Fire Alarm Wide Angle CMOS Sensor Night Vision-SD/NVR Data Storage Options
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT840-72ZTM100W
Availability: InStock

Home Products Laser PTZ Camera

China Manufactured PTZ Camera 10km Long Range Thermal Fire Alarm Wide Angle CMOS Sensor Night Vision-SD/NVR Data Storage Options

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT840-72ZTM100W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP, 3MP, 2MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	6.5-143mm	IP Rating:	Ip66
Sensor:	CMOS, 1/2.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~-90°, Optical Zoom 92 Times	Product Name:	Thermal Imaging Ptz Camera
Min. Illumination:	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )	Resolution:	1920 X 1080
NETD:	≤40	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc

Product Paramenters

Product Features (High-Power Laser PTZ Camera)
1. Ultra-Long Range Imaging
* Visible Light Camera:
* 1080P Full HD (1920×1080) via 1/2.8" CMOS sensor
* Ultra-low light: 0.0005Lux (color)/0.0001Lux (B/W) for 24/7 clarity
* 92X optical zoom (6.1-561mm) for extreme long-range detail capture
* Laser Illuminator:
* 15W power, 808nm wavelength
* 2000m effective distance for 0Lux night vision in complete darkness
* Synchronized zoom laser with multi-core fusion technology (no speckle/dark ring)
2. Precision Pan-Tilt Performance
* 360° continuous pan & -45°~+40° tilt coverage
* Rotation speed: 20°/s (pan) & 10°/s (tilt) with auto-speed adjustment
* ±0.1° preset accuracy (200 presets) for precise positioning
* Double-pitch worm gear drive with electronic image stabilization
3. Industrial-Grade Durability
* IP66 waterproof/dustproof & -35℃~+65℃ operation
* 4000V EMC protection & 48-hour salt fog resistance (PH 6.5-7.2)
* Anti-corrosion materials for maritime/coastal defense applications
4. Intelligent Surveillance Capabilities

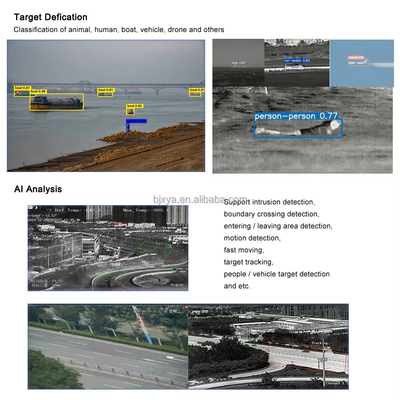

* Built-in AI analysis: intrusion detection, defogging, image enhancement
* H.265/H.264 compression for efficient bandwidth usage
* ONVIF/GB28181 compliance for seamless system integration
* Local SD card storage for data redundancy
Key Highlights
92X Zoom • 2000m Laser Range • ±0.1° Accuracy • IP66 • H.265 • All-Weather • Anti-Corrosion • 0Lux Night Vision

Model	ZA-PT840-92ZL20W
Day Camera
Sensor	1/2.8”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.0005Lux @(F1.5, AGC ON ); B/W : 0.0001Lux @(F1.5, AGC ON )
Focal Length	6.1-561mm
Optical zoom	92X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Laser
Power Consumption	15W
Wave Length	808nm
Effective Distance	2000 meters
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -45° ~+ 40° ;
Rotation Speed	Pan : 0.01～20°/S ;Tilt : 0.01～10°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	AC24V ±25% ， 50/60Hz ; DC24V ±10%, ;
Power Consumption	150W
Operating Temperature	-35℃~+65℃,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	≤25kg

Products Description

Application Areas

Widely applied in security scenarios: night surveillance, fire prevention, personnel flow analysis,
border/military/road/square/factory monitoring, parking lots, and perimeter protection. Specialized uses cover railway lines,large venues, coastal/shipborne/airport coastal defense, petrochemical/natural gas sites, ports, vehicle-mounted systems, andshipboard monitoring.

Certifications & Proven Performance:

Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.

Company Profile

As a National High - tech Enterprise, Tianjin Xinyaan Technology Co., Ltd. (Tianjin Zhongan Video Technology CO., LTD). integrates
R&D, manufacturing, sales, and services in
the security industry. Specializing in pan - tilt technology, we focus on advanced applications like radar detection and multi -
spectral recognition.
With 25 years of R&D experience, we lead in PTZ control, holding nearly 100 patents and over 120 software copyrights. Our
expertise in servo and gyro - stabilized imaging enables high - end, customized security products for extreme environments.
Our products range from explosion - proof cameras to integrated management platforms. Serving sectors like military - civilian
integration, petrochemical, and smart cities, we offer one - stop procurement.
Renowned for quality, we've won top honors:
* Awards: China’s Top 10 Security Brands (multiple categories) and the SPSE Golden Tripod Award.

* Certifications: ISO 9001, 14001, 45001, and military - civilian security enterprise qualification.

* Memberships: Key roles in industry associations.

Committed to tailored solutions, we're a global leader in intelligent pan - tilt systems.

Manufacturing Technique

Exhibition

Our Advantages

With 25 years of in - depth expertise in the security industry, Tianjin Xinyaan Technology Co., Ltd. is your trusted partner for high - quality yet cost - effective security solutions. Whether you require a single unit or an order of 100 pieces, our dedicated team is ready to craft a fully customized solution tailored precisely to your needs.

What sets us apart? Our unbeatable 5 - year warranty ensures long - term peace of mind, safeguarding your investment. We don't offer one - size - fits - all products; instead, we analyze your unique application field and industry requirements to design a detailed, comprehensive solution. From military - civilian integration projects to petrochemical security setups, our approach combines technical excellence with industry - specific insights.

Ready to elevate your security infrastructure? Send us an inquiry today, and let’s transform yourvision into a high - performance, reliable security solution.

Logistics Information

We provide flexible shipping method according to the quantity customers order, but we can help with sea or land transporta tion if you order mass quantity.

FAQ

1.Same price, best quality

The company has been a supplier of security equipment in China, we have served our suppliers for more than 20 years, we can provide your security equipment and most of the accessories you need, the same price, the best quality, I assure you.

2. What payment methods do you accept?

We can usually use T/T or L/C, and sometimes DP. (1) T/T, 30% deposit in advance, 70% balance to be paid before shipment, long-term customers can present the original copy of the bill of lading. (2) L/C, 100% irrevocable L/C without "soft clauses" from an internationally recognized bank is acceptable. Please ask the sales manager you work with for advice.

3. Which Incoterms 2010 clauses can you use?

We are a professional and well-established international player that can handle all INCOTERMS 2010, we usually work on
conventional terms such as FOB, CFR, CIF, CIP, DAP.

4. How long is your price valid?

We are a gentle and friendly supplier and never seek excessive profits. Our prices remain basically stable throughout the year. We will only adjust prices based on the following two situations: (1) The US dollar exchange rate: the RMB exchange rate varies greatly according to international currency exchange rates; (2) The manufacturer/factory adjusts the machine price due to an increase in labor costs or raw material costs.

5. What logistics methods can you use for transportation?

We can transport security equipment by various means of transport. (1) 80% of our shipments will be by sea, to all major
continents, such as Africa, South America, the Middle East. (2) To China's inland neighboring countries, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can transport by road or rail. (3) For urgently needed light spare parts, we can use international express services such as DHL, TNT, UPS, Fedex, etc.

6. How about the delivery time?

Normally, we can deliver normal products to our customers immediately within 15 days, if the mass production order equipment needs more than 30 days.

7.How soon can you respond to customer inquiries?

Our team is made up of a group of hardworking and energetic people, working around the clock to respond to customer inquiries and questions at any time. Most issues can be successfully resolved within 8 hours

8.Your kindly advice

If you still don't want to choose us after reading the details page, please let us know why. We are very willing to improve and do better to help more customers like you. Even a small suggestion will make a big difference.
