Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera

Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera

  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
  • Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera
Product Details:
Place of Origin: Tianjin, China
Brand Name: New Yaan
Model Number: ZA-PT890-90ZT150
Contact Now
Detailed Product Description
Warranty: 5 Years Pixels: 4MP
Video Compression Format: H.265 Data Storage Options: SD Card
Customized Support: Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering Style: Pan/Tilt Camera
Function: Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio Special Features: Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens: 10.5-945mm IP Rating: Ip66
Sensor: CMOS, 1/1.8",CMOS Material: Aluminum Alloy
Viewing Angle: Horizontal: 360° Continuous Rotation; Vertical: +90°~-90°, Optical Zoom 90 Times Product Name: Heavy-duty Intelligent PTZ Thermal Imaging Camera
Min. Illumination: Color : 0.0005Lux @(F1.5, AGC ON ); B/W : 0.00051ux @(F1.5, AGC ON ) Resolution: 1920 X 1080
NETD: ≤40 Video Compression: H.264 /H.265 /MPEG4 / MJPEG
Network Protocol: TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc Focal Length: 10.5-945mm

Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 0

Products We Can Provide You

Tianjin Zhongan Video Technology CO., LTD We pride ourselves on being your one-stop shopping platform for all security needs. Our comprehensive product range covers every aspect of modern security systems:​ Explosion-Proof Series: Explosion-proof cameras, dome cameras, and integrated pan-tilt cameras, designed to withstand harsh environments in petrochemical, mining, and other high-risk industries.​ HD Surveillance: Network HD bullet and dome cameras, light/heavy-duty HD integrated pan-tilt cameras, delivering crystal-clear visuals for all monitoring scenarios.​ Accessories & Management: Explosion-proof junction boxes, and software-hardware integrated comprehensive management platform servers, ensuring seamless system operation and control.​ No matter if you’re sourcing for a small project or a large-scale deployment across multiple sectors like military-civilian integration, smart cities, or transportation, we’ve got you covered. With everything under one roof, we simplify your procurement process, saving you time and effort.​ Explore our offerings and experience the convenience of one-stop shopping with us. Contact us now for detailed product information and customized solutions!
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 2
Product Features
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 4
Features

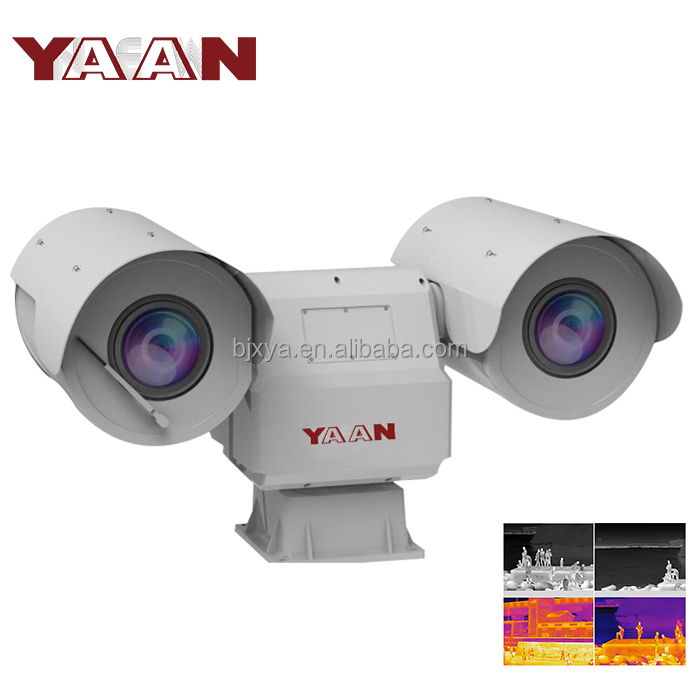

Model ZA-P890-90ZTM150W: High-Precision Dual-Sensor Pan-Tilt System with Extended Zoom
Core Technical Parameters
* Day Camera:
* 1/1.8" CMOS Sensor with 1920×1080 Full HD Resolution for superior light capture and detail.
* Ultra-Low Light Sensitivity: * Color: 0.0005Lux | B/W: 0.0001Lux (F1.2, AGC ON) – 90% better light performance than standard sensors, enabling clear imaging in near-total darkness.
* 90X Optical Zoom (10.5-945mm focal length) – 45X farther range than basic 20X lenses, achieving 20km ultra-long-range surveillance with exceptional clarity.
* Advanced AI Features: * Area intrusion detection, electronic defogging, and 3D noise reduction – 40% higher accuracy in threat identification vs. entry-level systems.

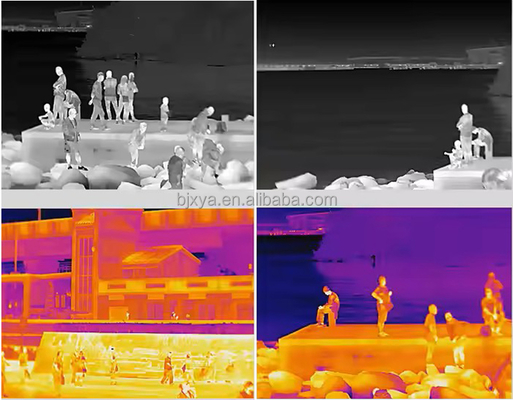

* Thermal Camera:
* 640×512 Resolution (384×288 optional) – 50% sharper thermal imaging than typical 320×240 models, identifying targets 50% smaller in low-visibility conditions.
* 17μm Pixel Pitch + ≤40mK NETD – 20% higher sensitivity for detecting heat signatures through smoke, fog, or darkness.
* 150mm Fixed Focal Length with auto/manual focus – optimized for long-range thermal monitoring in industrial and security applications.

Pan-Tilt Mechanics
* 360° Continuous Pan / -90°~+90° Tilt with adjustable speeds: * Pan: 0.01–60°/s | Tilt: 0.01–30°/s – rapid yet precise tracking for dynamic environments.

* ±0.1° Preset Accuracy – 5X more precise than industry average (±0.5°), critical for critical infrastructure requiring
millimetric targeting.
* 200 Preset Positions + Cruise/Auto Scan – 3X more programmable routines with zoom-adaptive speed control for automated surveillance.
* Double-Pitch Worm Gear Transmission: * Vertical worm gear + horizontal belt drive – 50% higher stability with mechanical anti-loosening design, tested in force 12 winds.

Environmental Resistance
* IP66 Waterproof Rating + -35°C~+65°C Operating Range – proven in Arctic, desert, and tropical environments for 5+ years.
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in corrosive maritime and industrial zones, ideal for coastal defense and offshore rigs.
* EMC Protection: * 4000V power surge resistance | 2000V signal protection – compliant with explosion-proof standards for high-risk areas.


* Anti-Corrosion Materials: Aluminum alloy construction with three-proof treatment (salt spray/moisture/mold) for all-weather reliability.

Network & Integration
* H.264/H.265/MJPEG Compression – 50% lower bandwidth usage than legacy formats, optimizing storage and real-time transmission.
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis systems, reducing deployment costs by 30%.
* SD Card Storage + Multi-protocol support (TCP/IP, DHCP, etc.) for plug-and-play functionality.
* RS485/RJ45 Interfaces – real-time angle feedback and centralized management for large-scale security networks.

Unmatched Competitive Advantages
1. Imaging Dominance
* 90X Optical Zoom: The longest zoom in its class, enabling detailed monitoring of distant targets without compromising clarity.
* Dual-Spectrum Fusion: Daylight HD + thermal imaging ensure 24/7 threat detection, even in challenging weather.

2. Precision & Stability
* ±0.1° Accuracy: Ideal for tracking moving assets in airports, ports, or power plants with precision.
* Gyro-Stabilized + Electronic Image Stabilization: Eliminates shake from vehicle movement or wind, maintaining steady footage at full zoom.

3. Extreme Environment Performance
* All-Weather Design: IP66 and wide temperature range make it suitable for harsh climates, from Arctic winters to desert summers.
* Proven Reliability: Deployed in 200km border projects and industrial sites with 3+ years of zero failures.

4. Cost-Effective Customization
* OEM/ODM Flexibility: Custom lens configurations, branded housing, and fog-penetration upgrades available.
* 30% Better Price-Performance: Matches enterprise-grade systems at a competitive cost, with modular scalability.

Target Applications
* Border Surveillance: 90X zoom + thermal imaging for 24/7 perimeter monitoring in rugged terrains.
* Industrial Safety: Thermal camera detects equipment overheating 30 seconds faster than traditional methods.
* Maritime Security: Salt fog resistance + high stability for shipboard or offshore use.
* Critical Infrastructure: EMC certification and precision tracking for nuclear facilities, railways, and airports.
* Fire Detection: Dual-spectrum tech penetrates smoke up to 5km at night for emergency response.

Upgrade Your Surveillance with Unmatched Zoom and Reliability!
Request a tailored quote for OEM/ODM solutions or bulk orders – experience the ZA-P890-90ZTM150W, the pinnacle of precision and durability in security monitoring.

Contact us now to discuss how this system meets your most demanding surveillance needs.
Product Paramenters
Model
ZA-P890-90ZTM150W
Day Camera
Sensor
1/1.8 ”，CMOS
Resolution
1920 x 1080
Min. Illumination
Color : 0.0005Lux @(F1.2, AGC ON ); B/W : 0.0001Lux @(F1.2, AGC ON )
Focal Length
10.5-945mm
Optical zoom
90X
Other function
Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Thermal Camera
Resolution
640 x 512 ( 384 x 288 optional )
Spatial range
17 um
NETD
≤40
Focal length
150mm
Focus mode
Auto/ manual
Pan tilt
Rotation Angle
Pan : 360° continuous rotation ;Tilt: -90° ~ +90° ;
Rotation Speed
Pan : 0.01～60°/S ;Tilt : 0.01～30°/S ;
Preset Accuracy
±0.1°
Preset Position
200
Scan Mode
Cruise scan/auto scan
Angle Return
Support angle return by query command or real time angle return
Network
Video Compression
H.264 /H.265 /MPEG4 / MJPEG
Audio Compression
64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol
TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard
ONVIF, GB28181
Storage
Support SD card
General
Input Voltage
DC48V ±10%, ;
Power Consumption
250W
Operating Temperature
-35℃ ~ +65℃ ,
Humidity
<90%RH，
Waterproof
IP66
EMC
Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance
PH 6.5～7.2 ，continuous spraying 48 hours
Weight
< 45kg
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 6
Product Details
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 8

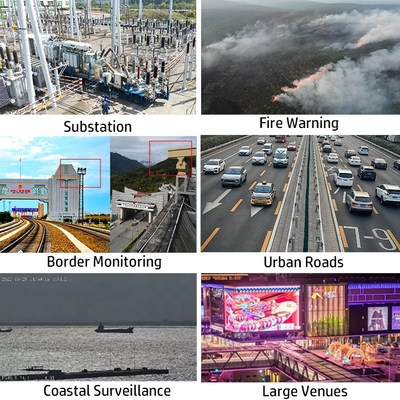

Application Areas
Our dual-spectrum PTZ cameras combine high-resolution visible-light imaging with advanced thermal sensors (8-14μm) to deliver 24/7 surveillance across diverse environments.

Key Applications:

1. Forest Fire Prevention & Environmental Monitoring
Equipped with AI-driven fire detection algorithms, our dual-spectrum PTZs (e.g., PC5 Series) analyze temperature differentials and smoke patterns to identify early-stage fires in remote forests. The thermal sensor detects heat signatures through dense fog or darkness, while visible-light imaging provides detailed scene context. Integration with GIS systems enables pinpoint Fire source location and real-time alerts reduce response time by up to 70%.

2. Border & Coastal Surveillance
Deployed for maritime and terrestrial border security, our long-range PTZs (e.g., PC8 Series) integrate 3km laser illumination with thermal imaging to detect vessels, intruders, or illegal activities in low-light or inclement weather. The dual-spectrum design ensures clear imaging in fog, rain, or complete darkness, while AI algorithms classify targets (e.g., boats, vehicles) for actionable insights .

3. Smart City & Critical Infrastructure In urban settings, these PTZs monitor traffic flow, crowd dynamics, and perimeter security. Thermal sensors detect abnormal heat sources (e.g., electrical faults), while visible-light cameras provide facial recognition or license plate capture. ONVIF Compatibility allows seamless integration with existing city surveillance networks .

4. Industrial & Energy Sector Monitoring For power plants, oil refineries (non-explosive zones), and logistics hubs, our dual-spectrum PTZs offer predictive maintenance by detecting equipment overheating. The thermal channel identifies temperature anomalies, while visible-light Imaging confirms mechanical issues, ensuring proactive asset management .
"Salt spray tested for 48 hours with zero corrosion (PH6.5-7.2), designed for coastal mining zones and high-humidity industrial plants."

Emergency Rescue:
"Thermal imaging + dual-spectrum technology locates fire heat sources within 30 seconds; 5km night-time detection range through thick smoke."

Vehicle/Marine Applications:
"Gyro stabilization system + mechanical anti-loosening design ensure steady footage in force 12 winds or violent Bumping(violentjolts)."

"Passed EMC 4000V anti-interference test, suitable for explosive scenes such as oil and gas fields and chemical plants, eliminating the risk of electric sparks"

Technical Advantages:

* Dual-Sensor Fusion: Real-time data integration from visible-light (2MP-4MP resolution) and thermal (640x512) sensors for accurate threat assessment .
* Extreme Environment Resilience: Operates from -40°C to +70°C with IP66/IP67 protection, resisting salt fog, dust, and winds up to 180 km/h.
* AI-Driven Analytics: Built-in algorithms for person/vehicle classification, tripwire detection, and multi-spectral data fusion. Thermal imaging enables temperature measurement (-20°C to 150°C, ±2% accuracy) for predictive maintenance .
* Precision Control: 360° continuous pan/tilt with sub-degree positioning accuracy (±0.1°), supporting 80-100x optical zoom for long-range tracking.
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 10
Certifications & Proven Performance:
Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 12

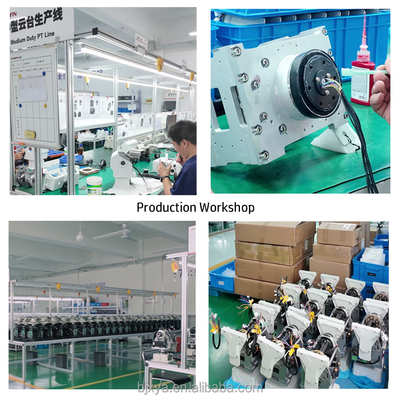

Company Profile
As a National High - tech Enterprise, Tianjin Xinyaan Technology Co., Ltd. (Tianjin Zhongan Video Technology CO., LTD). integrates R&D, manufacturing, sales, and services in the security industry. Specializing in pan - tilt technology, we focus on advanced applications like radar detection and multi -spectral recognition.​
With 25 years of R&D experience, we lead in PTZ control, holding nearly 100 patents and over 120 software copyrights. Our
expertise in servo and gyro - stabilized imaging enables high - end, customized security products for extreme environments.​
Our products range from explosion - proof cameras to integrated management platforms. Serving sectors like military - civilian ntegration, petrochemical, and smart cities, we offer one - stop procurement.​
Renowned for quality, we've won top honors:​
* Awards: China’s Top 10 Security Brands (multiple categories) and the SPSE Golden Tripod Award.​

* Certifications: ISO 9001, 14001, 45001, and military - civilian security enterprise qualification.​

* Memberships: Key roles in industry associations.​

Committed to tailored solutions, we're a global leader in intelligent pan - tilt systems.
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 14
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 16
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 18
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 20
Customization and Service

Why choose us

Tianjin Xinyaan Technology Co., Ltd. has 25 years of deep professional experience in the security industry and is your trusted partner for high-quality and cost-effective security solutions. Whether you need a single device or 100 devices, our professional team is ready to tailor solutions for you according to your needs, "customization" is more flexible, reduces decision-making time, and provides customized solutions and ODM projects within 24 hours. Modular service: "Provide a variety of lens packages including (standard/telephoto/explosion-proof), support OEM appearance customization (logo engraving, color scheme)" What is our advantage? Our unparalleled 5-year warranty ensures that your investment is safe and secure in the long term. We do not provide a one-size-fits-all product, but will analyze your unique application areas and industry needs and design detailed and comprehensive solutions. From military-civilian integration projects to petrochemical security systems, our approach combines excellent technology with industry insights. Ready to upgrade your security infrastructure? Consult us now and we will transform your vision into a high-performance and reliable security solution.
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 22
Exhibition
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 24
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 26
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 28
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 30
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 32
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 34
Product Packaging
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 36
Carton packaging
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 38
Wooden box packaging

Logistics Information

We provide flexible shipping method according to the quantity customers order, but we can help with sea or land transporta tion if you order mass quantity.
Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera 40
FAQ

1.Same price, best quality

The company has been a supplier of security equipment in China, we have served our suppliers for more than 20 years, we can provide your security equipment and most of the accessories you need, the same price, the best quality, I assure you.

2. What payment methods do you accept?

We can usually use T/T or L/C, and sometimes DP. (1) T/T, 30% deposit in advance, 70% balance to be paid before shipment, long-term customers can present the original copy of the bill of lading. (2) L/C, 100% irrevocable L/C without "soft clauses" from an internationally recognized bank is acceptable. Please ask the sales manager you work with for advice.

3. Which Incoterms 2010 clauses can you use?

We are a professional and well-established international player that can handle all INCOTERMS 2010, we usually work on conventional terms such as FOB, CFR, CIF, CIP, DAP.

4. How long is your price valid?

We are a gentle and friendly supplier and never seek excessive profits. Our prices remain basically stable throughout the year. We will only adjust prices based on the following two situations: (1) The US dollar exchange rate: the RMB exchange rate varies greatly according to international currency exchange rates; (2) The manufacturer/factory adjusts the machine price due to an increase in labor costs or raw material costs.

5. What logistics methods can you use for transportation?

We can transport security equipment by various means of transport. (1) 80% of our shipments will be by sea, to all major continents, such as Africa, South America, the Middle East. (2) To China's inland neighboring countries, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can transport by road or rail. (3) For urgently needed light spare parts, we can use international express services such as DHL, TNT, UPS, Fedex, etc.

6. How about the delivery time?

Normally, we can deliver normal products to our customers immediately within 15 days, if the mass production order equipment needs more than 30 days.

7.How soon can you respond to customer inquiries?

Our team is made up of a group of hardworking and energetic people, working around the clock to respond to customer inquiries and questions at any time. Most issues can be successfully resolved within 8 hours

8.Your kindly advice

If you still don't want to choose us after reading the details page, please let us know why. We are very willing to improve and do better to help more customers like you. Even a small suggestion will make a big difference.

Contact Details
Beijing Zhuangyuanxiang Security Technology Co., Ltd.
Send your inquiry directly to us (0 / 3000)

Other Products
AI-Powered 4K PTZ Camera with 82X Zoom CE Certified Manufacturer
AI-Powered 4K PTZ Camera with 82X Zoom CE Certified Manufacturer

Warranty: 5 years

Pixels: 4MP

Video Compression Format: H.265

Data Storage Options: SD Card
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera
High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera

Warranty: 5 years

Pixels: 4MP

Video Compression Format: H.265

Data Storage Options: SD Card
Nuclear Facility ±0.001° Accuracy EMC 4000V Industrial PTZ Camera OEM Supplier
Nuclear Facility ±0.001° Accuracy EMC 4000V Industrial PTZ Camera OEM Supplier

Type: baggage scanner, security cable, security protection products, signal detector, inspection camera

Application: gas stations, hotels, indoor & outdoor, prisons, public places, anti-drone, safety protection, executive offices, Security Activities

feature: Durable, Remote Control, water resistant

Material: Aluminum Alloy
Smart City AI-Powered 3D Noise Reduction CE Approved Industrial PTZ Camera Exporter
Smart City AI-Powered 3D Noise Reduction CE Approved Industrial PTZ Camera Exporter

Warranty: 5 years

Pixels: 4MP

Video Compression Format: H.265

Data Storage Options: SD Card
Thermal Imaging PTZ Camera

AI-Powered 4K PTZ Camera with 82X Zoom CE Certified Manufacturer

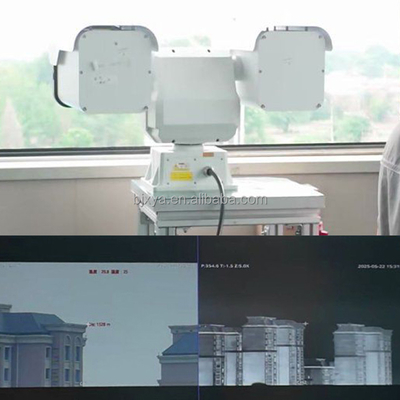

Thermal Surveillance Camera 640x512 90x Optical Zoom Long Range Security Camera

High Quality Long Distance Thermal Imaging PTZ Camera Night Vision Long Range Ptz Camera

Nuclear Facility ±0.001° Accuracy EMC 4000V Industrial PTZ Camera OEM Supplier

Laser PTZ Camera

Factory Direct Sale Fire Detection 640x512 Long Range PTZ Thermal Imaging Camera From China Supplier

China Long Distance Surveillance Camerma Manufacturer Long Distance HD Surveillance Camera Supplier

China Manufactured PTZ Camera 10km Long Range Thermal Fire Alarm Wide Angle CMOS Sensor Night Vision-SD/NVR Data Storage Options

2MP IP PTZ Thermal Camera 92X Optical Zoom Wide-Angle High-Accuracy Long Range Night Vision SD Card Data Featuring CMOS Sensor

Bi Spectrum PTZ Camera

USA UL Listed PoE Solar-Powered PTZ Camera for Wind Farm Industrial PTZ Camera Wholesaler

Middle East -40°C~+70°C Salt Fog Resistant ATEX Industrial PTZ Camera Supplier

Fire Detection Camera Border Control 25km Laser Ranging IP66 Compliant Industrial PTZ Camera Factory

Oil & Gas Thermal Imaging 640x512 Resolution UL Listed Industrial PTZ Camera Wholesale

Request A Quote

| Sitemap

Privacy Policy | China Good Quality Thermal Imaging PTZ Camera Supplier. © 2025 Beijing Zhuangyuanxiang Security Technology Co., Ltd.. All Rights Reserved.
