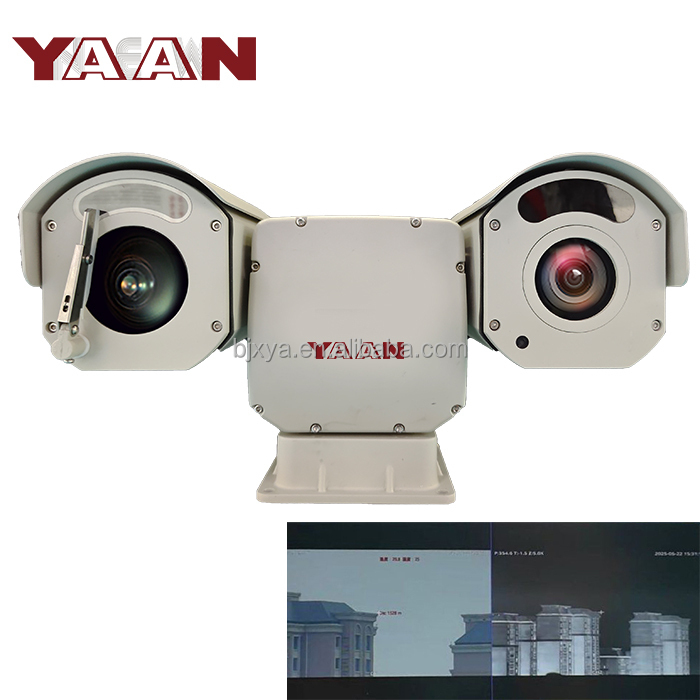

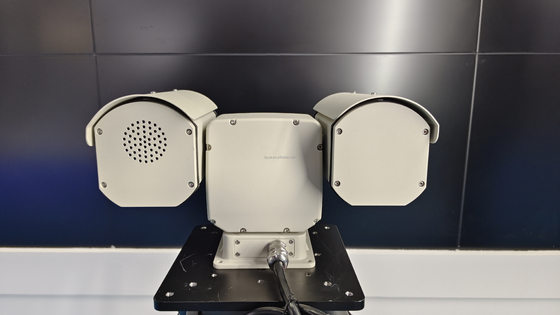

* 24/7 continuous long-range monitoring with the fire detection camera, capturing delicate, high-detail images for precise observation. Equipped with dual-mode imaging (daylight + thermal), it ensures reliable surveillance in all light and weather conditions.
* User-friendly design enables quick installation and rapid deployment, with all modules fully customizable(resolution, zoom, lens, etc.) to fit specific needs—maximizing the flexibility of this thermal imaging security camera.
* Integrated high-performance pan-tilt mechanism: 360° continuous pan rotation and -90°~+90° tilt for complete omnidirectional coverage. Boasting variable-speed control (Pan: 0.01~30°/s; Tilt: 0.01~15°/s) and ±0.1° preset accuracy across 200 presets, it delivers blind-spot-free, high-precision monitoring.

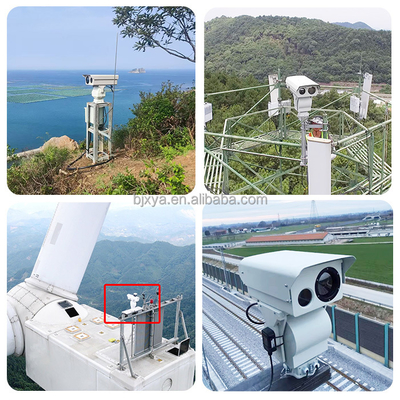

* Rugged IP66-rated enclosure with anti-corrosion materials and triple-proof treatment, built to withstand harsh environments: -35℃~+65℃ operating temperature, <90%RH humidity, and 48-hour salt fog resistance (PH 6.5~7.2). Ideal for marine, coastal, field, and industrial scenarios, this thermal imaging security camera thrives in extreme conditions.
* Enhanced dual-sensor sensitivity: Daylight camera with ultra-low light performance (Color: 0.01Lux @F1.5, AGC ON; B/W: 0.0005Lux @F1.5, AGC ON); thermal camera with 640x512 resolution, NETD ≤40, and 17μm spatial resolution—ensuring clear imaging in total darkness, fog, or glare.
1. Adopts a double-pitch worm gear transmission with low standby power consumption, featuring power-off self-locking, strong wind resistance, and stable operation—guaranteeing long-term reliability for the thermal imaging security camera.
2. Sleek, rugged design with anti-corrosion materials, perfectly suited for harsh environments like high-wind fields, coastal areas, and industrial zones.
3. Equipped with continuous zoom technology: 26X optical zoom (5-130mm focal length) for the daylight camera and adaptive thermal lens, enabling wide-range target search and identification with the thermal imaging security camera.
4. High-resolution thermal system with 640x512 pixels, high temperature sensitivity (NETD ≤40), and -20℃~150℃ temperature measurement (20℃~350℃ optional) for accurate heat-based detection.
5. Day-night dual-use daylight camera (4MP 1920x1080) with optional 8MP upgrade, supporting 22X-92X optical zoom to adapt to diverse monitoring ranges.
6. Multi-position intelligent autofocus adapts to scene changes (e.g., fog, motion) for fast, precise focusing—enhancing the thermal imaging security camera’s real-time response.
7. Advanced thermal lens supports 200 customizable presets, enabling systematic monitoring range control and intelligent patrols—tailored to the thermal imaging security camera’s specific use cases.
8. Durable aluminum alloy PTZ shell, filled with nitrogen, achieves IP66 waterproofing and resists salt spray, corrosion, and acid rain—ideal for marine, coastal, and industrial environments, ensuring the thermal imaging security camera’s longevity.
9. Compatible with multiple communication protocols (TCP/IP, ONVIF, GB28181, etc.) with customizable interfaces; integrates seamlessly with LRF, laser illuminators, and tracking modules for linkage tracking—expanding the thermal imaging security camera’s surveillance capabilities.
10. Universal variable-speed PTZ with ±0.1° positioning accuracy enables blind-spot-free, all-round monitoring—critical for high-precision tracking in the thermal imaging security camera system.
Daylight Camera
* High-definition imaging: 4MP (1920x1080) resolution (optional 8MP upgrade) with 1/2.8” CMOS sensor, capturing sharp details even in ultra-low light (Color: 0.01Lux @F1.5, AGC ON; B/W: 0.0005Lux @F1.5, AGC ON).
* Flexible optical zoom: Optional 22X-92X zoom (standard 26X, 5-130mm focal length) for long-range target identification, perfectly matching the thermal imaging security camera’s monitoring range.
* Advanced image processing: Supports H.264/H.265 compression, 120dB WDR, optical defog penetration, 3D noise reduction, and electronic defog—ensuring clear imaging in fog, backlight, or low-light conditions.
* Local storage: Supports 128G/256G SD cards for continuous recording, enhancing the thermal imaging security camera’s data management efficiency.
Thermal Camera
* Customizable resolution: 384x288 / 640x512 / 1280x1024 pixels (standard 640x512) to fit the thermal imaging security camera’s precision needs.
* Versatile lens options: 150mm, 200mm, 20-60mm, and more (standard 25mm) for flexible long-range monitoring, adapting to diverse Scenarioof the thermal imaging security camera.
* Enhanced thermal performance: NETD ≤40, 17μm spatial resolution, and -20℃~150℃ temperature measurement (20℃~350℃ optional) for clear heat contrast and accurate target detection.
* Intelligent image optimization: AGC automatic gain adjustment, 3D noise reduction, and SDE detail enhancement—paired with 8/15 adjustable pseudo-colors (black heat, white heat, etc.) for improved visibility.
* Seamless integration: Supports SDK & ONVIF protocols, ensuring compatibility with existing systems and boosting the thermal imaging security camera’s connectivity.
Laser Irradiator
* Integrated with the thermal imaging security camera, this high-power laser source delivers 500-3000m ultra-long-distance irradiation with strong penetration—ensuring clear imaging in total darkness for large-range monitoring.
* Works in sync with the high-resolution daylight/thermal cameras of the thermal imaging security camera, enabling long-distance high-definition imaging with visible details—laying a solid foundation for post-image analysis.
* Intelligent control system: Supports remote adjustment of beam angle and intensity, automatically adapting to changing scenes to maximize the thermal imaging security camera’s monitoring efficiency.
* Efficient heat dissipation and smart power management reduce energy consumption, prolonging service life and ensuring stable 24/7 operation alongside the thermal imaging security camera. Fully customizable to match specific range and power needs.
