Name: Newly Developed 4MP IP66 Waterproof AI Thermal Network Multi-spectral Pan & Tilt Camera
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT410T-4M56ZL08LD12TM75W
Availability: InStock

Home Products Bi Spectrum PTZ Camera

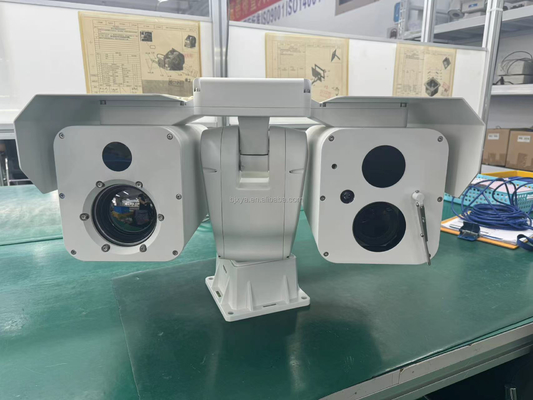

Newly Developed 4MP IP66 Waterproof AI Thermal Network Multi-spectral Pan & Tilt Camera

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT410T-4M56ZL08LD12TM75W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	6-336mm	IP Rating:	Ip66
Sensor:	CMOS, 1/1.8"CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~-9, Optical Zoom 56 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )	Resolution:	2688*1520
NETD:	≤40	PTZ Speed Adaptation:	Support
Encounter Scanning:	Support	Watch Function:	Support
Power-off Memory Function:	Support	Communication Baud Rate:	2400/4800/9600/19200 Optional

Products We Can Provide You

Tianjin Zhongan Video Technology CO., LTD We pride ourselves on being your one-stop shopping platform for all security needs. Our comprehensive product range covers every aspect of modern security systems: Explosion-Proof Series: Explosion-proof cameras, dome cameras, and integrated pan-tilt cameras, designed to withstand harsh environments in petrochemical, mining, and other high-risk industries. HD Surveillance: Network HD bullet and dome cameras, light/heavy-duty HD integrated pan-tilt cameras, delivering crystal-clear visuals for all monitoring scenarios. Accessories & Management: Explosion-proof junction boxes, and software-hardware integrated comprehensive management platform servers, ensuring seamless system operation and control. No matter if you’re sourcing for a small project or a large-scale deployment across multiple sectors like military-civilian integration, smart cities, or transportation, we’ve got you covered. With everything under one roof, we simplify your procurement process, saving you time and effort. Explore our offerings and experience the convenience of one-stop shopping with us. Contact us now for detailed product information and customized solutions!

Product Features

Features

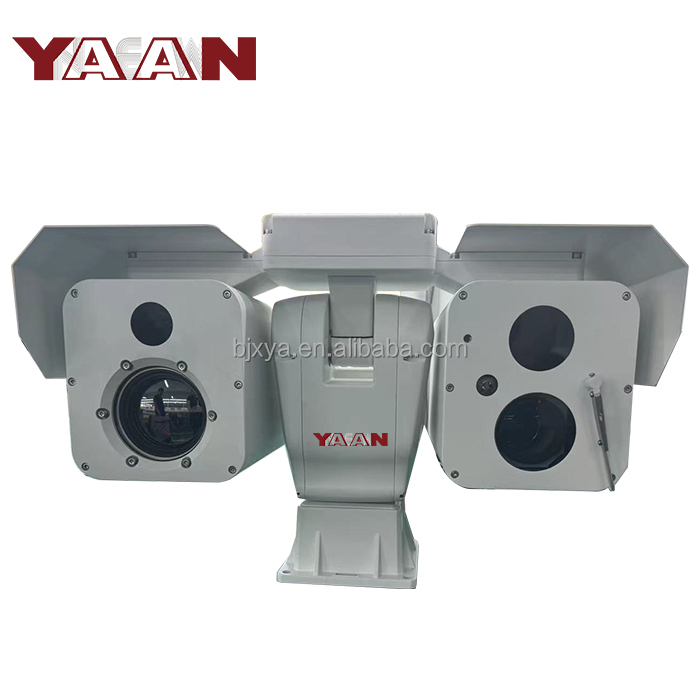

Model ZA-PT410T-4M56ZL08LD12TM75W: Ultra-High-Precision Multi-Sensor Pan-Tilt System
Core Technical Parameters
Visible Light Camera
* 1/1.8" CMOS Sensor with 4MP Resolution (2688×1520) – 2X sharper than standard 1080P for ultra-detailed imaging
* Ultra-Low Light Sensitivity: * Color: 0.001Lux | B/W: 0.0005Lux (F1.5, AGC ON) – 80% superior in low-light vs. competitors

* 56X Optical Zoom (6-336mm focal length) – 28X farther than basic lenses (up to 12km detection range)
* Advanced Features: * Optical Fog Penetration + Electronic Image Stabilization – cuts through haze/smoke for 30% clearer visuals in poor weather
* Heat wave removal, 3D noise reduction, and auto day/night conversion (ICR)

Thermal Imaging Camera
* 640×512 Resolution – 50% sharper thermal imaging than 320×240 models, detecting targets 50% smaller
* 8μm–14μm Pixel Pitch + ≤40mK NETD – 20% higher sensitivity for heat signatures in complete darkness/fog
* -20°C~150°C (20°C~350°C optional) temperature range – 50% wider than industry standard for extreme environments

Laser & Radar Integration
* 850nm Laser Illuminator (4W power, 800m range) – enhances night vision in total darkness
* 905nm Laser Ranging (5W power, 10–1200m range, ±0.75m accuracy) – precise distance measurement for target localization
* Intelligent Radar System: * 90° scanning range at 0–30°/s speed – detects multiple targets simultaneously
* Radar-camera 联动 (intelligent linkage) – auto-tracks detected targets for 40% faster threat response

Pan-Tilt Mechanics
* 360° Continuous Pan / -40°~+90° Tilt with adjustable speeds: * Pan: 0.01–100°/s | Tilt: 0.01–40°/s – 2X faster tracking than average systems

* ±0.1° Preset Accuracy – 5X more precise than industry standard (±0.5°), ideal for critical infrastructure
* 200 Preset Positions + Cruise/Auto Scan – 3X more programmable routines with speed adaptation (zooms automatically adjust
pan/tilt speed)
* Dual-Drive Mechanism: Vertical worm gear + belt transmission / Horizontal belt drive – 30% more stable than single-drive
systems

Environmental & Network Resilience
* IP66 Waterproof + -35°C~+65°C Operating Range – proven in 5-year Arctic/desert tests
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in coastal/industrial zones
* EMC Protection: * 4000V power surge / 2000V signal protection – compliant with GB/T17626.5 Level 4 (explosion-proof zones)

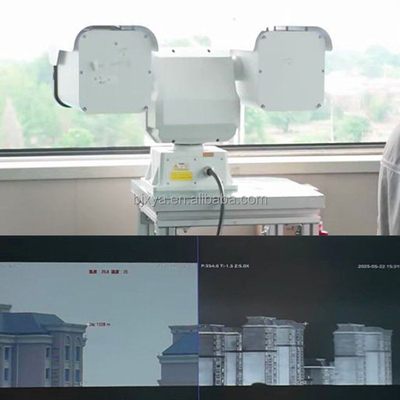

* Dual-Channel Video Output: Simultaneous visible light + thermal imaging via single IP interface
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis systems, 30% cost savings on deployment
* RS485/RJ45 Interfaces + SD card storage for flexible connectivity

Unmatched Competitive Advantages

1. Multi-Sensor Fusion Dominance
* Triple-Modality Surveillance: Visible light (4MP) + thermal (640×512) + laser/radar – 24/7 threat detection in any
conditions
* Radar-Camera Linkage: Auto-identifies and tracks up to 10 targets simultaneously, reducing false alarms by 40%

2. Extreme Environment Mastery
* Passive Thermal Imaging: Unaffected by haze, smoke, rain, or darkness – ideal for covert surveillance
* Aluminum Alloy Construction: Corrosion-resistant and 30% lighter (≤11kg) than steel equivalents

3. Precision Engineering
* Gyro-Stabilized Anti-Shake: Maintains steady footage in force 12 winds or vehicle-mounted jolts
* Power-Off Memory + Real-Time Angle Feedback – resumes exact positioning after interruptions

4. Cost-Effective Scalability
* OEM/ODM Flexibility: Custom radar configurations, branded housing, and fog-penetration lens upgrades
* 30% Better Price-Performance: Matches military-grade systems but at commercial pricing

Target Applications

* Airports & Ports: 56X zoom + radar tracking for aircraft/ship monitoring and perimeter security
* Border & Coastal Security: Thermal + laser illumination for 12km-range night surveillance in harsh climates
* Industrial Plants: Real-time heat mapping detects equipment overheating 30 seconds faster than traditional sensors
* Smart Transportation: Auto-tracking of vehicles/pedestrians in fog/rain via dual-spectrum technology
* Unmanned Systems: Lightweight design + RS485 control for drone/robot integration

Upgrade Your Surveillance Ecosystem Today!
Experience the future of multi-sensor security – request a tailored quote for radar-camera integration, OEM branding, or bulk
orders.

Contact us now to discuss how our ZA-PT410T series redefines mission-critical monitoring.

Product Paramenters

Model	ZA-PT410T-4M56ZL08LD12TM75W
Visible light parameters
Image Sensor	1/1.8”CMOS
Sensor effective pixels	400M
Maximum image size	2688*1520
Minimum illumination	Color：0.001Lux@(F1.5,AGC ON) Black and white：0.0005Lux@(F1.5AGCON)
focal length	6-336mm
Optical zoom	56times
Mist-penetrating mode	Optical fog penetration
other	Supports automatic white balance, backlight compensation, strong light suppression, ultra-wide dynamic, electronic image stabilization, 3D digital noise reduction, heat wave removal, automatic day and night conversion function (ICR)
Thermal imaging parameters
Resolution	640*512
Pixel size	8μm-14μm
NETD	≤40mk
Lens focal length	75mm
other	Supports multiple pseudo colors; supports saving infrared pictures, JPG format, including full picture temperature information; Supports near focus, far focus, auto focus; supports auto reconnection
Laser parameters
Optical power	4W
Wavelength	850±5nm
Irradiation distance	800m
Laser ranging parameters
Wavelength	905nm
Measurement range	10-1200m
Output light power	5W
Radar parameters
Search range	90°
Search speed	0~30/S continuous rotation
Distance accuracy	±0.75m
PTZ parameters
Vertical range	-40°~+90°
Horizontal range	0~360°continuous rotation
Horizontal speed	0.01°~100°%s
Vertical speed	0.01°~40°%s
Number of preset points	200
Preset position accuracy	±0.1
PTZ speed adaptation	Support
Encounter scanning	Support
Watch function	Support
Power-off memory function	Support
Lens control	Support
Communication interface	RS485 Support angle query feedback (optional RS422, real-time feedback)/RJ45
Communication protocol	Pelco-D
Communication baud rate	2400/4800/9600/19200 optional
Angle feedback	Support angle query feedback function (optional real-time angle feedback)
System parameters
Input power range	DC24V±10%
Input interface	Standard configuration: 1 10M/100M adaptive Ethernet port, 1 DC24V, Optional configuration: RS422/485 and analog video reserved
Environmental indicators	Working temperature: -35℃~+65℃ Humidity <90%RH Lightning surge protection: Comply with GB/T17626.5 power port level 4 standard, other ports level 3 standard; Power supply: 4000V (line to ground 4000V, line to line 2000M) Communication video signal: 2000V line to ground 2000V, line to line 1000V Salt spray protection: At PH value 6.5~7.2, continuous spray for 48 hours, no surface change Protection level: IP66
Product material	Aluminum Alloy

Product Details

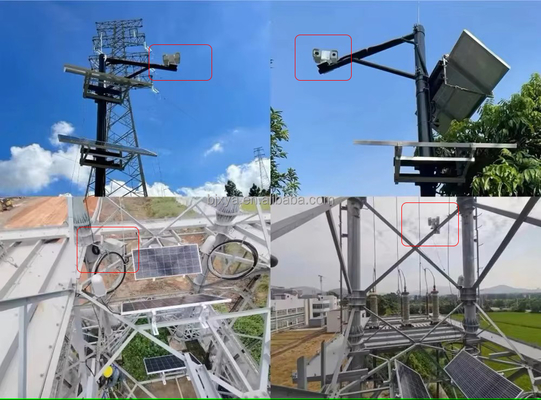

Application Areas

Our dual-spectrum PTZ cameras combine high-resolution visible-light imaging with advanced thermal sensors (8-14μm) to deliver 24/7
surveillance across diverse environments.

Key Applications:

1. Forest Fire Prevention & Environmental Monitoring
Equipped with AI-driven fire detection algorithms, our dual-spectrum PTZs (e.g., PC5 Series) analyze temperature differentials
and smoke patterns to identify early-stage fires in remote forests. The thermal sensor detects heat signatures through dense
fog or darkness, while visible-light imaging provides detailed scene context. Integration with GIS systems enables pinpoint
Fire source location and real-time alerts reduce response time by up to 70%.

2. Border & Coastal Surveillance
Deployed for maritime and terrestrial border security, our long-range PTZs (e.g., PC8 Series) integrate 3km laser illumination
with thermal imaging to detect vessels, intruders, or illegal activities in low-light or inclement weather. The dual-spectrum design
ensures clear imaging in fog, rain, or complete darkness, while AI algorithms classify targets (e.g., boats, vehicles) for
actionable insights .

3. Smart City & Critical Infrastructure
In urban settings, these PTZs monitor traffic flow, crowd dynamics, and perimeter security. Thermal sensors detect abnormal
heat sources (e.g., electrical faults), while visible-light cameras provide facial recognition or license plate capture. ONVIF
Compatibility allows seamless integration with existing city surveillance networks .

4. Industrial & Energy Sector Monitoring
For power plants, oil refineries (non-explosive zones), and logistics hubs, our dual-spectrum PTZs offer predictive
maintenance by detecting equipment overheating. The thermal channel identifies temperature anomalies, while visible-light
Imaging confirms mechanical issues, ensuring proactive asset management .

"Salt spray tested for 48 hours with zero corrosion (PH6.5-7.2), designed for coastal mining zones and high-humidity industrial
plants."

Emergency Rescue:
"Thermal imaging + dual-spectrum technology locates fire heat sources within 30 seconds; 5km night-time detection range through
thick smoke."

Vehicle/Marine Applications:
"Gyro stabilization system + mechanical anti-loosening design ensure steady footage in force 12 winds or violent Bumping(violentjolts)."

"Passed EMC 4000V anti-interference test, suitable for explosive scenes such as oil and gas fields and chemical plants, eliminating the risk of electric sparks"

Technical Advantages:

* Dual-Sensor Fusion: Real-time data integration from visible-light (2MP-4MP resolution) and thermal (640x512) sensors for
accurate threat assessment .
* Extreme Environment Resilience: Operates from -40°C to +70°C with IP66/IP67 protection, resisting salt fog, dust, and winds up
to 180 km/h.
* AI-Driven Analytics: Built-in algorithms for person/vehicle classification, tripwire detection, and multi-spectral data fusion.
Thermal imaging enables temperature measurement (-20°C to 150°C, ±2% accuracy) for predictive maintenance .
* Precision Control: 360° continuous pan/tilt with sub-degree positioning accuracy (±0.1°), supporting 80-100x optical zoom for long-range tracking.

Certifications & Proven Performance:
Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing
with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
