Name: Long Range 1km Multispectral Camera for Agriculture Night Vision and SD Card Data Storage for Perimeter Protection
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT306-4M22ZR05TMR25W
Availability: InStock

Home Products Bi Spectrum PTZ Camera

Long Range 1km Multispectral Camera for Agriculture Night Vision and SD Card Data Storage for Perimeter Protection

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT306-4M22ZR05TMR25W

Contact Now

Detailed Product Description

Features:	Vandal-proof	Warranty:	5 Years
Pixels:	4MP	Video Compression Format:	H.265
Data Storage Options:	SD Card	Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering
Style:	Ptz Camera	Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio
Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement	Lens:	6.5-143mm
IP Rating:	Ip66	Sensor:	CMOS, 1/2.8",CMOS
Material:	Aluminum Alloy	Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~-90°, Optical Zoom 22 Times / Customizable Up To 92x Optical Zoom
Keyword:	Thermal Security Camera	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.01Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )	Resolution:	1920 X 1080
NETD:	≤40	Access Standards:	ONVIF
Function:	Alarm I/o	Type:	Waterproof / Weatherproof

Product Paramenters

Technical Parameters and Product Features
The camera long range stands out with its 1920×1080 Full HD day camera, enabling clear imaging even in ultra-low light (0.01Lux color / 0.0005Lux B/W at F1.5, AGC ON), and a thermal camera supporting -20℃~150℃ temperature measurement (20℃-350℃ optional) with ±2℃/±2% accuracy. The pan-tilt offers 360° continuous rotation, ±0.1° preset accuracy, and adaptive speed adjustment based on zoom level. It integrates H.264/H.265 compression, ONVIF/GB28181 compliance, and IP66 waterproofing for all-weather reliability.

Featuring a double-pitch worm gear transmission and mechanical anti-loosening design, it ensures power-off self-locking and strongwind resistance. Intelligent functions include lens presets, camera-auxiliary light linkage for night vision, and 3D noisereduction, delivering stable high-precision monitoring.

Model	ZA-PT306-26ZTMR25W
Day Camera
Pixel	400P
Sensor	1/2.8”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.01Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )
Focal Length	5-130mm
Optical zoom	26X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Thermal Camera
Resolution	640 x 512
Spatial range	17 um
NETD	≤40
Focal length	25mm
Focus mode	Auto/ manual
Temp. measurement range	-20℃-150℃ ( 20℃-350℃ optional )
Temp. measurement accuracy	±2℃ or ±2% ( take larger )
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -90° ~+ 90° ;
Rotation Speed	Pan : 0.01～30°/S ;Tilt : 0.01～15°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	DC24V
Power Consumption	20W (Max 40W )
Working Temperature	-35℃~+65℃,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：6000V ； signal： 4000V
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	≤4.5kg
Optional
Sound pick up	5 meters
Loudspeaker	3 meters
Laser Range Finder	Customized

Products Description

Manufacturing Technique

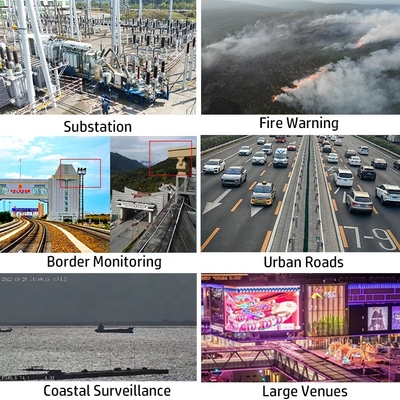

Application Areas

Widely applied in security scenarios: night surveillance, fire prevention, personnel flow analysis,
border/military/road/square/factory monitoring, parking lots, and perimeter protection. Specialized uses cover railway lines, large venues, coastal/shipborne/airport coastal defense, petrochemical/natural gas sites, ports, vehicle-mounted systems, and shipboard monitoring.

Application Areas

Certifications & Proven Performance:

Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.

Company Profile

As a National High - tech Enterprise, Tianjin Xinyaan Technology Co., Ltd. (Tianjin Zhongan Video Technology CO., LTD). integrates
R&D, manufacturing, sales, and services in
the security industry. Specializing in pan - tilt technology, we focus on advanced applications like radar detection and multi -
spectral recognition.
With 25 years of R&D experience, we lead in PTZ control, holding nearly 100 patents and over 120 software copyrights. Our
expertise in servo and gyro - stabilized imaging enables high - end, customized security products for extreme environments.
Our products range from explosion - proof cameras to integrated management platforms. Serving sectors like military - civilian
integration, petrochemical, and smart cities, we offer one - stop procurement.
Renowned for quality, we've won top honors:
* Awards: China’s Top 10 Security Brands (multiple categories) and the SPSE Golden Tripod Award.

* Certifications: ISO 9001, 14001, 45001, and military - civilian security enterprise qualification.

* Memberships: Key roles in industry associations.

Committed to tailored solutions, we're a global leader in intelligent pan - tilt systems.

Exhibition

Our Advantages

With 25 years of in - depth expertise in the security industry, Tianjin Xinyaan Technology Co., Ltd. is your trusted partner for high - quality yet cost - effective security solutions. Whether you require a single unit or an order of 100 pieces, our dedicated team is ready to craft a fully customized solution tailored precisely to your needs.

What sets us apart? Our unbeatable 5 - year warranty ensures long - term peace of mind, safeguarding your investment. We don't offer one - size - fits - all products; instead, we analyze your unique application field and industry requirements to design a detailed, comprehensive solution. From military - civilian integration projects to petrochemical security setups, our approach combines technical excellence with industry - specific insights.

Ready to elevate your security infrastructure? Send us an inquiry today, and let’s transform yourvision into a high - performance, reliable security solution.
