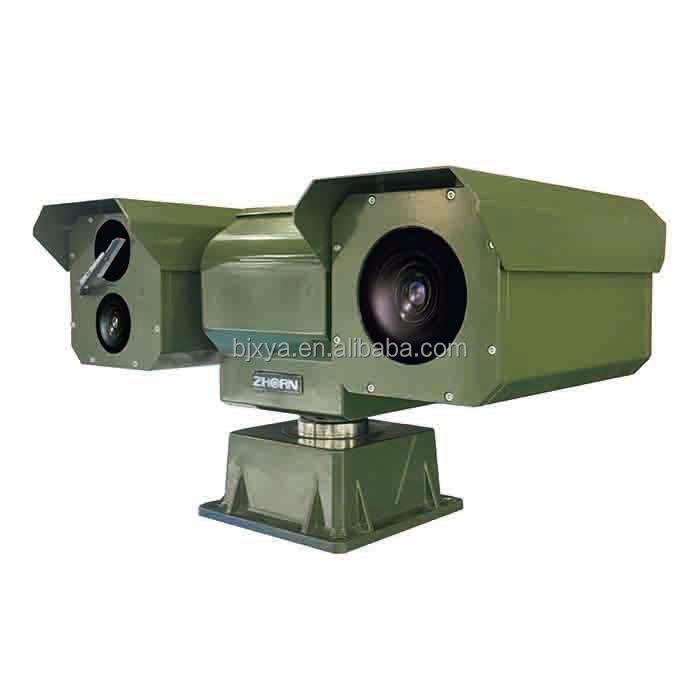

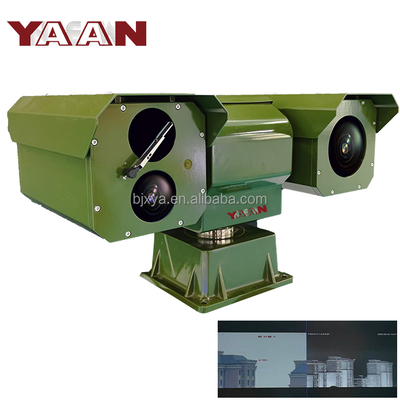

China Supplier 4MP IP66 Waterproof AI Thermal Network Multi-spectral Pan & Tilt Camera for Ports and Docks

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT540-72ZTM100W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	6-336mm	IP Rating:	Ip66
Sensor:	CMOS, 1/1.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~ 90°, Optical Zoom 56 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )	Maximum Image Size:	1920 X 1080
NETD:	≤40	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc	Resolution:	384x288/640x512

Product Paramenters

Product Features (thermal cctv camera outdoor )
1. High-Definition Imaging Capability
* Visible Light Camera:
* 1080P Full HD (1920×1080) via 1/2.8" CMOS sensor
* Low-light performance: 0.001Lux (color)/0.0005Lux (B/W)
* 42X optical zoom (7-300mm focal length) for long-range detail capture
* Thermal Camera:
* 640×512 resolution (384×288 optional)
* ≤40mK NETD for high thermal sensitivity
* 100mm focal length with auto/manual focus
* Laser Illuminator:
* 8W power, 808nm wavelength
* 800m effective distance for 0Lux night vision
2. Precision Pan-Tilt Performance
* 360° continuous pan & -90°~+90° tilt for full coverage
* Rotation speed: 60°/s (pan) & 30°/s (tilt) with auto-speed adjustment
* ±0.1° preset accuracy across 200 presets; supports cruise/auto scan
* Double-pitch worm gear drive for vibration-free stability
3. Advanced Lighting & Anti-Environment Design
* Synchronized zoom laser lighting system for uniform illumination
* Multi-core fusion light technology: no speckle/dark ring, high edge clarity
* IP66 weatherproof, -35℃~+65℃ operation, 48h salt fog resistance (PH 6.5-7.2)
* Anti-corrosion materials & three-proof treatment for maritime/coastal applications
4. Intelligent Surveillance Functions
* Built-in image enhancement & intelligent analysis (intrusion, defogging, etc.)
* Adaptive zoom & speed adjustment based on lens parameters
* H.265/H.264 video compression for bandwidth efficiency
* ONVIF/GB28181 compliance for easy system integration
Key Highlights
42X Zoom • 640×512 Thermal • 800m Laser Range • ±0.1° Preset Accuracy • IP66 • H.265 • All-Weather Design • Anti-Corrosion

Model	ZA-PT540-42ZL8TM100W
Day Camera
Sensor	1/2.8 ”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )
Focal Length	7-300mm
Optical zoom	42X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Thermal Camera
Resolution	640 x 512 ( 384 x 288 optional )
Spatial range	17 um
NETD	≤40
Focal length	100mm
Focus mode	Auto/ manual
Laser
Power Consumption	8W
Wave Length	808nm
Effective Distance	800 meters
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -90° ~ +90° ;
Rotation Speed	Pan : 0.01～60°/S ;Tilt : 0.01～30°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	AC24V ±25% ， 50/60Hz ; DC24V ±10%, ;
Power Consumption	120W
Operating Temperature	-35℃ ~ +65℃ ,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance	PH 6.5～7.2 ，continuous spraying 48 hours
Weight	≤23kg

Products Description

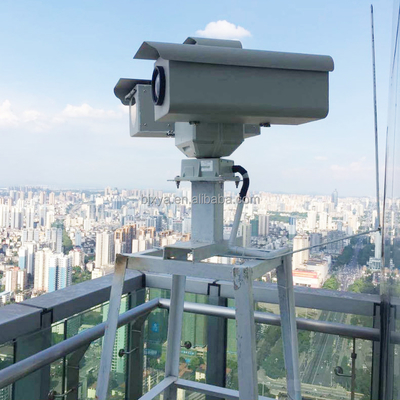

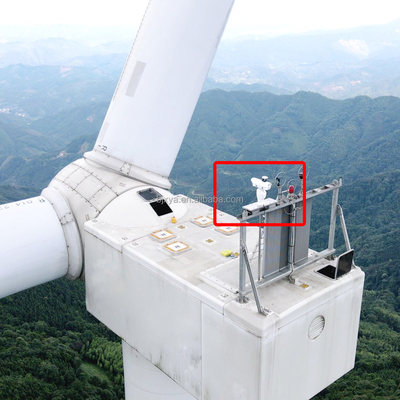

Application Areas

Widely applied in security scenarios: night surveillance, fire prevention, personnel flow analysis,
border/military/road/square/factory monitoring, parking lots, and perimeter protection. Specialized uses cover railway lines,large venues, coastal/shipborne/airport coastal defense, petrochemical/natural gas sites, ports, vehicle-mounted systems, andshipboard monitoring.

Certifications & Proven Performance:

Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
