Name: 2MP IP PTZ 92X Optical Zoom Laser HD Intelligent Linkage Long Distance Infrared Thermal Camera for Border Control
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT540-92ZL20W
Availability: InStock

Home Products Laser PTZ Camera

2MP IP PTZ 92X Optical Zoom Laser HD Intelligent Linkage Long Distance Infrared Thermal Camera for Border Control

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT540-92ZL20W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP, 3MP, 2MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	6.1-561mm	IP Rating:	Ip66
Sensor:	CMOS, 1/1.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +40°~-45°, Optical Zoom 92 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.0005Lux @(F1.5, AGC ON ); B/W : 0.0001Lux @(F1.5, AGC ON )	Maximum Image Size:	1920x1080
Lrradiation Distance:	2000M	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc	Focal Length:	6.1-561mm
Night Vision:	Support Night Vision

Products We Can Provide You

Tianjin Zhongan Video Technology CO., LTD We pride ourselves on being your one-stop shopping platform for all security needs. Our comprehensive product range covers every aspect of modern security systems: Explosion-Proof Series: Explosion-proof cameras, dome cameras, and integrated pan-tilt cameras, designed to withstand harsh environments in petrochemical, mining, and other high-risk industries. HD Surveillance: Network HD bullet and dome cameras, light/heavy-duty HD integrated pan-tilt cameras, delivering crystal-clear visuals for all monitoring scenarios. Accessories & Management: Explosion-proof junction boxes, and software-hardware integrated comprehensive management platform servers, ensuring seamless system operation and control. No matter if you’re sourcing for a small project or a large-scale deployment across multiple sectors like military-civilian integration, smart cities, or transportation, we’ve got you covered. With everything under one roof, we simplify your procurement process, saving you time and effort. Explore our offerings and experience the convenience of one-stop shopping with us. Contact us now for detailed product information and customized solutions!

Product Features

Features

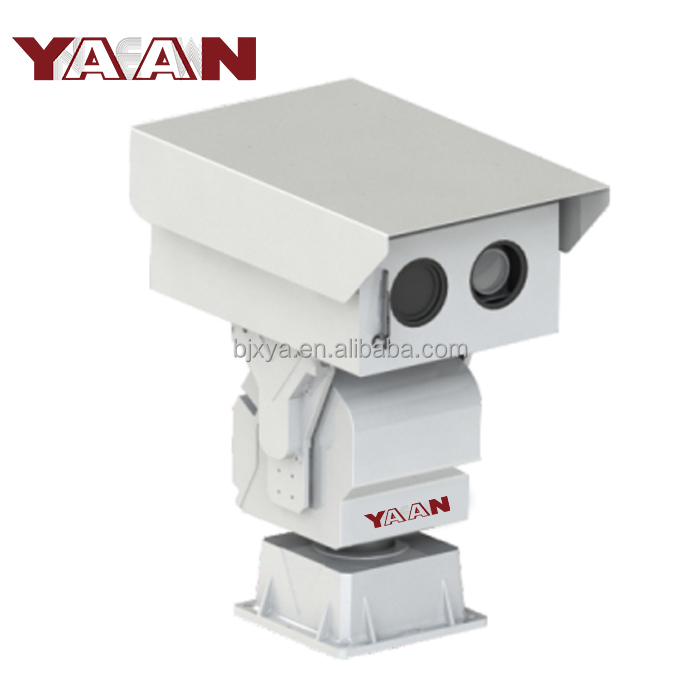

Model ZA-PT540-92ZL20W: Ultra-Long-Range Dual-Sensor Pan-Tilt System with Laser Technology
Core Technical Parameters
* Day Camera:
* 1/2.8" CMOS Sensor with 1920×1080 Full HD Resolution
* Ultra-Low Light Sensitivity: * Color: 0.0005Lux | B/W: 0.0001Lux (F1.5, AGC ON) – 90% superior light capture in near-dark conditions vs. standard sensors
* 92X Optical Zoom (6.1-561mm focal length) – 46X farther range than basic 20X lenses, enabling 20km ultra-long-range surveillance
* Advanced AI Features: * Area intrusion detection, electronic defogging, and 3D noise reduction – 50% higher detection accuracy for security-critical scenarios

* Laser Module:
* 15W Power | 808nm Wavelength – provides 2000m (2km) effective illumination in complete darkness
* Synchronous Zoom Laser Lighting: Auto-adjusts beam focus with optical zoom for uniform coverage up to 20km
* Multi-Core Fusion Light Technology: Eliminates speckle and dark rings, delivering 30% clearer edge details in low-light environments

* Pan-Tilt Mechanics:
* 360° Continuous Pan / -45°~+40° Tilt with adjustable speeds: * Pan: 0.01–20°/s | Tilt: 0.01–10°/s – smooth, precision tracking for ultra-long-range targets
* ±0.1° Preset Accuracy – 5X more precise than industry average (±0.5°), ideal for pinpoint targeting
* 200 Preset Positions + Cruise/Auto Scan – 3X more programmable routines with speed adaptation for zoom-dependent tracking
* Double-Pitch Worm Gear Transmission: * Vertical worm gear + horizontal belt drive – 50% higher stability than single-drive systems, with mechanical anti-loosening design
* Power-off Self-Locking – maintains position during power interruptions

Environmental Resistance
* IP66 Waterproof Rating + -35°C~+65°C Operating Range – tested for 5+ years in Arctic, desert, and coastal storms
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in maritime/industrial corrosive environments
* EMC Protection: * 4000V power surge resistance | 2000V signal protection – compliant with explosion-proof and high-lightning zones

* Anti-Corrosion Materials: Three-proof treatment (salt spray/moisture/mold) for harsh maritime and border applications

Network & Integration
* H.264/H.265/MJPEG Compression – 50% lower bandwidth usage than MPEG4, optimizing storage and transmission
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis systems, reducing deployment costs by 30%
* SD Card Storage + Multi-protocol support (TCP/IP, DHCP, etc.) for plug-and-play functionality
* RS485/RJ45 Interfaces – real-time angle feedback and centralized management for large-scale systems

Unmatched Competitive Advantages
1. Extreme Range & Clarity
* 92X Optical Zoom + 2km Laser: The industry’s leading combination for ultra-long-range surveillance, identifying targets 2X farther than standard dual-sensor systems
* Dual-Spectrum Imaging: Daylight HD + laser-illuminated visuals ensure 24/7 clarity, even in total darkness or fog

2. Precision Engineering
* ±0.1° Accuracy: Critical for monitoring distant infrastructure (e.g., offshore rigs, border checkpoints) with millimeter precision
* Gyro-Stabilized + Electronic Image Stabilization: Eliminates shake from wind (force 12) or vehicle movement, ensuring steady footage at full zoom

3. Harsh Environment Dominance
* All-Weather Maritime Certification: IP66 + salt fog resistance makes it ideal for coastal defense, offshore platforms, and border patrols
* Proven Reliability: Deployed in 200km border projects and Middle Eastern oil facilities with 3+ years of zero failures

4. Cost-Effective Innovation
* OEM/ODM Flexibility: Custom laser configurations, branded housing, and zoom lens upgrades (e.g., thermal modules)
* 30% Better Price-Performance: Delivers enterprise-grade performance at a competitive cost, with scalable modular design

Target Applications
* Maritime & Coastal Security: 20km laser range + 92X zoom for tracking vessels, intrusions, or smuggling routes in real time
* Border Surveillance: Covers vast terrains with ultra-long-range imaging, supported by laser illumination for nighttime operations
* Critical Infrastructure: Power plants, pipelines, and transportation hubs requiring 24/7 monitoring in extreme conditions
* Industrial Safety: Early fire detection via thermal integration (optional) and laser-assisted night vision for large-scale facilities
* Aerospace & Defense: Precision tracking for airfields, missile sites, or maritime borders with unmatched range and stability
Redefine Surveillance Capabilities Today!
Experience the future of ultra-long-range security – request a tailored quote for laser integration, OEM solutions, or bulk orders.
Contact us now to discuss how the ZA-PT540-92ZL20W meets your most demanding monitoring needs.

Product Paramenters

Model	ZA-PT540-92ZL20W
Day Camera
Sensor	1/2.8”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.0005Lux @(F1.5, AGC ON ); B/W : 0.0001Lux @(F1.5, AGC ON )
Focal Length	6.1-561mm
Optical zoom	92X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Laser
Power Consumption	15W
Wave Length	808nm
Effective Distance	2000 meters
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -45° ~+ 40° ;
Rotation Speed	Pan : 0.01～20°/S ;Tilt : 0.01～10°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	AC24V ±25% ， 50/60Hz ; DC24V ±10%, ;
Power Consumption	150W
Operating Temperature	-35℃~+65℃,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	≤25kg
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	≤21kg

Product Details

Application Areas

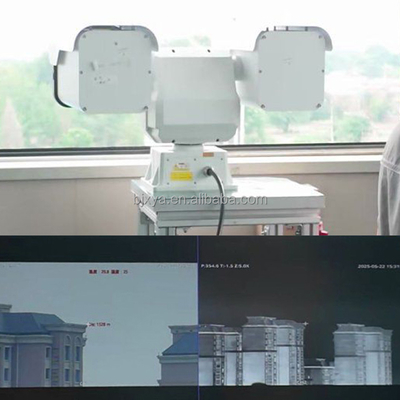

Our dual-spectrum PTZ cameras combine high-resolution visible-light imaging with advanced thermal sensors (8-14μm) to deliver 24/7 surveillance across diverse environments.

Key Applications:

1. Forest Fire Prevention & Environmental Monitoring
Equipped with AI-driven fire detection algorithms, our dual-spectrum PTZs (e.g., PC5 Series) analyze temperature differentials and smoke patterns to identify early-stage fires in remote forests. The thermal sensor detects heat signatures through dense fog or darkness, while visible-light imaging provides detailed scene context. Integration with GIS systems enables pinpoint Fire source location and real-time alerts reduce response time by up to 70%.

2. Border & Coastal Surveillance
Deployed for maritime and terrestrial border security, our long-range PTZs (e.g., PC8 Series) integrate 3km laser illumination with thermal imaging to detect vessels, intruders, or illegal activities in low-light or inclement weather. The dual-spectrum design ensures clear imaging in fog, rain, or complete darkness, while AI algorithms classify targets (e.g., boats, vehicles) for actionable insights .

3. Smart City & Critical Infrastructure
In urban settings, these PTZs monitor traffic flow, crowd dynamics, and perimeter security. Thermal sensors detect abnormal heat sources (e.g., electrical faults), while visible-light cameras provide facial recognition or license plate capture. ONVIF Compatibility allows seamless integration with existing city surveillance networks .

4. Industrial & Energy Sector Monitoring
For power plants, oil refineries (non-explosive zones), and logistics hubs, our dual-spectrum PTZs offer predictive
maintenance by detecting equipment overheating. The thermal channel identifies temperature anomalies, while visible-light Imaging confirms mechanical issues, ensuring proactive asset management .

"Salt spray tested for 48 hours with zero corrosion (PH6.5-7.2), designed for coastal mining zones and high-humidity industrial plants."

Emergency Rescue:
"Thermal imaging + dual-spectrum technology locates fire heat sources within 30 seconds; 5km night-time detection range through thick smoke."

Vehicle/Marine Applications:
"Gyro stabilization system + mechanical anti-loosening design ensure steady footage in force 12 winds or violent Bumping(violentjolts)."

"Passed EMC 4000V anti-interference test, suitable for explosive scenes such as oil and gas fields and chemical plants, eliminating the risk of electric sparks"

Technical Advantages:

* Dual-Sensor Fusion: Real-time data integration from visible-light (2MP-4MP resolution) and thermal (640x512) sensors for accurate threat assessment .
* Extreme Environment Resilience: Operates from -40°C to +70°C with IP66/IP67 protection, resisting salt fog, dust, and winds up to 180 km/h.
* AI-Driven Analytics: Built-in algorithms for person/vehicle classification, tripwire detection, and multi-spectral data fusion. Thermal imaging enables temperature measurement (-20°C to 150°C, ±2% accuracy) for predictive maintenance .
* Precision Control: 360° continuous pan/tilt with sub-degree positioning accuracy (±0.1°), supporting 80-100x optical zoom for long-range tracking.

Certifications & Proven Performance:
Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:
* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
