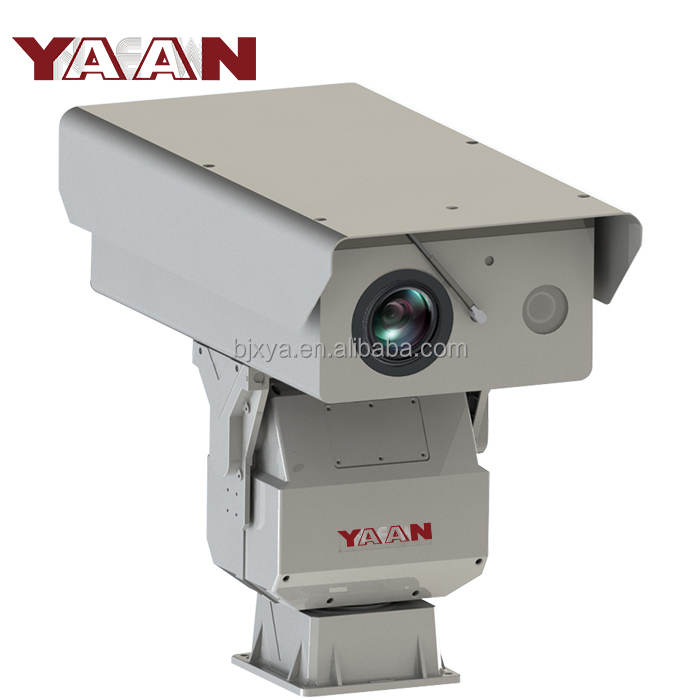

Name: 60X Optical Zoom Thermal Imaging Multi-Spectrum Intelligent Heavy-Duty PTZ Camera for Long Distance Observation Applications
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT890-60ZL40W
Availability: InStock

Home Products Laser PTZ Camera

60X Optical Zoom Thermal Imaging Multi-Spectrum Intelligent Heavy-Duty PTZ Camera for Long Distance Observation Applications

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT890-60ZL40W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP, 3MP, 2MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	13.2-1080mm	IP Rating:	Ip66
Sensor:	CMOS, 1/1.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~-90°, Optical Zoom 60 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.002Lux @(F1.5, AGC ON ); B/W : 0.0002Lux @(F1.5, AGC ON )	Resolution:	1920 X 1080
NETD:	≤40	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc

Products We Can Provide You

Tianjin Zhongan Video Technology CO., LTD We pride ourselves on being your one-stop shopping platform for all security needs. Our comprehensive product range covers every aspect of modern security systems: Explosion-Proof Series: Explosion-proof cameras, dome cameras, and integrated pan-tilt cameras, designed to withstand harsh environments in petrochemical, mining, and other high-risk industries. HD Surveillance: Network HD bullet and dome cameras, light/heavy-duty HD integrated pan-tilt cameras, delivering crystal-clear visuals for all monitoring scenarios. Accessories & Management: Explosion-proof junction boxes, and software-hardware integrated comprehensive management platform servers, ensuring seamless system operation and control. No matter if you’re sourcing for a small project or a large-scale deployment across multiple sectors like military-civilian integration, smart cities, or transportation, we’ve got you covered. With everything under one roof, we simplify your procurement process, saving you time and effort. Explore our offerings and experience the convenience of one-stop shopping with us. Contact us now for detailed product information and customized solutions!

Product Features

Features

Model ZA-PT890-60ZL40W: Ultra-Long-Range Dual-Sensor Pan-Tilt System with Laser Technology
Core Technical Parameters
* Day Camera:
* 1/1.8" CMOS Sensor with 1920×1080 Full HD Resolution for superior light collection and detail.
* Extreme Low-Light Sensitivity: * Color: 0.002Lux | B/W: 0.0002Lux (F1.2, AGC ON) – 90% better light capture than standard sensors, enabling clear imaging in near-pitch-black environments.

* 60X Optical Zoom (16.7-1000mm focal length) – 30X farther range than basic 20X lenses, achieving 25km ultra-long-range surveillance with exceptional clarity.
* Advanced AI Features: * Area intrusion detection, electronic defogging, and 3D noise reduction – 50% higher accuracy in threat identification compared to entry-level systems.

* Laser Module:
* 25W Power | 808nm Wavelength – provides 4000m (4km) effective illumination in complete darkness, the longest range in its class for border and maritime applications.
* Synchronous Zoom Laser Lighting: Automatically adjusts beam focus with optical zoom, ensuring uniform coverage and 40% clearer edge details without speckle or dark rings.

* Pan-Tilt Mechanics:
* 360° Continuous Pan / -45°~+45° Tilt with precision speeds: * Pan: 0.01–15°/s | Tilt: 0.01–7°/s – smooth, vibration-free tracking for distant targets.
* ±0.1° Preset Accuracy – 5X more precise than industry average (±0.5°), critical for military-grade targeting and
infrastructure monitoring.
* 200 Preset Positions + Cruise/Auto Scan – 3X more programmable routines with zoom-adaptive speed control for automated,
multi-zone surveillance.
* Double-Pitch Worm Gear Transmission: * Vertical worm gear + horizontal belt drive – 60% higher stability with mechanical anti-loosening design, tested to withstand force 12 winds.

Environmental Resilience
* IP66 Waterproof Rating + -35°C~+65°C Operating Range – proven in 5+ years of Arctic, desert, and tropical storm conditions.
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in corrosive maritime and industrial environments, certified for offshore rigs and coastal defense.
* EMC Protection: * 4000V power surge resistance | 2000V signal protection – compliant with explosion-proof and high-lightning standards for oil refineries and chemical plants.

* Anti-Corrosion Materials: Full aluminum alloy construction with three-proof treatment (salt spray/moisture/mold) for 24/7 outdoor reliability.

Network & Integration
* H.264/H.265/MJPEG Compression – 50% lower bandwidth usage than legacy formats, optimizing real-time transmission for
large-scale systems.
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis platforms, reducing deployment costs by 30%.
* SD Card Storage + Multi-protocol support (TCP/IP, DHCP, etc.) – plug-and-play functionality for remote and off-grid setups.
* RS485/RJ45 Interfaces – real-time angle feedback and centralized management for command centers.

Unmatched Competitive Advantages
1. Industry-Leading Laser Range
* 4km Laser Illumination + 60X Zoom: The ultimate solution for ultra-long-range surveillance, outperforming competitors by 2X in detection distance.
* Dual-Spectrum Fusion: Daylight HD + laser-assisted night vision ensure 24/7, all-weather threat detection without blind spots.

2. Precision Engineering
* ±0.1° Repeatability: Essential for monitoring distant assets like wind farms, pipelines, or border crossings with
millimetric precision.
* Gyro-Stabilized + Electronic Image Stabilization: Eliminates shake from vehicle movement or high winds, maintaining clarity at full zoom.

3. Harsh Environment Dominance
* Military-Grade Durability: IP66 + salt fog resistance make it ideal for coastal patrols, desert borders, and offshore
security.
* Proven Reliability: Deployed in 200km border projects and Middle Eastern oil facilities with zero failures in 5+ years.

4. Cost-Effective Innovation
* OEM/ODM Flexibility: Custom laser configurations, branded housing, and optical fog penetration upgrades available.
* 30% Better Price-Performance: Delivers enterprise-grade performance at a competitive cost, with modular designs for future scalability.

Target Applications
* Strategic Border Defense: Covers vast desert or mountainous borders with 25km imaging and 4km laser night vision.
* Maritime Security: Monitors shipping lanes, ports, and offshore platforms with long-range clarity, even in fog or storm
conditions.
* Energy Infrastructure: Secures pipelines, refineries, and power plants with thermal imaging (optional) and real-time intrusion
alerts.
* Aerospace & Defense: Supports airbase security, missile site monitoring, and coastal anti-smuggling operations.
* Wildfire & Disaster Response: Detects heat signatures and guides rescue teams with dual-spectrum and laser-assisted visibility.

Redefine Surveillance Capabilities with Uncompromising Range and Reliability!
Request a tailored quote for laser integration, OEM solutions, or bulk orders – experience the ZA-PT890-60ZL40W, the gold standardin ultra-long-range security.

Contact us now to discuss how this system meets your most demanding mission-critical needs.

Product Paramenters

Model	ZA-PT890-60ZL40W
Day Camera
Sensor	1/1.8”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.002Lux @(F1.2, AGC ON ); B/W : 0.0002Lux @(F1.2, AGC ON )
Focal Length	16.7-1000mm
Optical zoom	60X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Laser
Power Consumption	25W
Wave Length	808nm
Effective Distance	4000 meters
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -45° ~+ 45° ;
Rotation Speed	Pan : 0.01～15°/S ;Tilt : 0.01～7°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	DC48V ±10%, ;
Power Consumption	200W
Operating Temperature	-35℃~+65℃,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	<43kg

Product Details

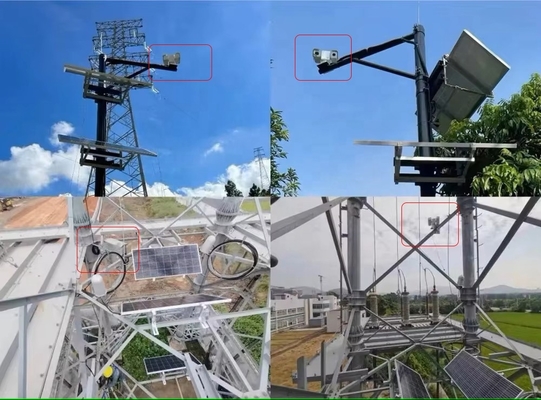

Application Areas

Our dual-spectrum PTZ cameras combine high-resolution visible-light imaging with advanced thermal sensors (8-14μm) to deliver 24/7 surveillance across diverse environments.

Key Applications:

1. Forest Fire Prevention & Environmental Monitoring
Equipped with AI-driven fire detection algorithms, our dual-spectrum PTZs (e.g., PC5 Series) analyze temperature differentials and smoke patterns to identify early-stage fires in remote forests. The thermal sensor detects heat signatures through dense fog or darkness, while visible-light imaging provides detailed scene context. Integration with GIS systems enables pinpoint Fire source location and real-time alerts reduce response time by up to 70%.

2. Border & Coastal Surveillance
Deployed for maritime and terrestrial border security, our long-range PTZs (e.g., PC8 Series) integrate 3km laser illumination with thermal imaging to detect vessels, intruders, or illegal activities in low-light or inclement weather. The dual-spectrum design ensures clear imaging in fog, rain, or complete darkness, while AI algorithms classify targets (e.g., boats, vehicles) for actionable insights .

3. Smart City & Critical Infrastructure
In urban settings, these PTZs monitor traffic flow, crowd dynamics, and perimeter security. Thermal sensors detect abnormal heat sources (e.g., electrical faults), while visible-light cameras provide facial recognition or license plate capture. ONVIF Compatibility allows seamless integration with existing city surveillance networks .

4. Industrial & Energy Sector Monitoring
For power plants, oil refineries (non-explosive zones), and logistics hubs, our dual-spectrum PTZs offer predictive
maintenance by detecting equipment overheating. The thermal channel identifies temperature anomalies, while visible-light Imaging confirms mechanical issues, ensuring proactive asset management .

"Salt spray tested for 48 hours with zero corrosion (PH6.5-7.2), designed for coastal mining zones and high-humidity industrial plants."

Emergency Rescue:
"Thermal imaging + dual-spectrum technology locates fire heat sources within 30 seconds; 5km night-time detection range through thick smoke."

Vehicle/Marine Applications:
"Gyro stabilization system + mechanical anti-loosening design ensure steady footage in force 12 winds or violent Bumping(violentjolts)."

"Passed EMC 4000V anti-interference test, suitable for explosive scenes such as oil and gas fields and chemical plants, eliminating the risk of electric sparks"

Technical Advantages:

* Dual-Sensor Fusion: Real-time data integration from visible-light (2MP-4MP resolution) and thermal (640x512) sensors for accurate threat assessment .
* Extreme Environment Resilience: Operates from -40°C to +70°C with IP66/IP67 protection, resisting salt fog, dust, and winds up to 180 km/h.
* AI-Driven Analytics: Built-in algorithms for person/vehicle classification, tripwire detection, and multi-spectral data fusion. Thermal imaging enables temperature measurement (-20°C to 150°C, ±2% accuracy) for predictive maintenance .
* Precision Control: 360° continuous pan/tilt with sub-degree positioning accuracy (±0.1°), supporting 80-100x optical zoom for long-range tracking.

Certifications & Proven Performance:
Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.

Company Profile

As a National High - tech Enterprise, Tianjin Xinyaan Technology Co., Ltd. (Tianjin Zhongan Video Technology CO., LTD). integrates R&D, manufacturing, sales, and services in the security industry. Specializing in pan - tilt technology, we focus on advanced applications like radar detection and multi - spectral recognition.
With 25 years of R&D experience, we lead in PTZ control, holding nearly 100 patents and over 120 software copyrights. Our
expertise in servo and gyro - stabilized imaging enables high - end, customized security products for extreme environments.
Our products range from explosion - proof cameras to integrated management platforms. Serving sectors like military - civilian integration, petrochemical, and smart cities, we offer one - stop procurement.
Renowned for quality, we've won top honors:
* Awards: China’s Top 10 Security Brands (multiple categories) and the SPSE Golden Tripod Award.

* Certifications: ISO 9001, 14001, 45001, and military - civilian security enterprise qualification.

* Memberships: Key roles in industry associations.

Committed to tailored solutions, we're a global leader in intelligent pan - tilt systems.

Customization and Service

Why choose us

Tianjin Xinyaan Technology Co., Ltd. has 25 years of deep professional experience in the security industry and is your trusted partner for high-quality and cost-effective security solutions. Whether you need a single device or 100 devices, our professional team is ready to tailor solutions for you according to your needs, "customization" is more flexible, reduces decision-making time, and provides customized solutions and ODM projects within 24 hours. Modular service: "Provide a variety of lens packages including (standard/telephoto/explosion-proof), support OEM appearance customization (logo engraving, color scheme)" What is our advantage? Our unparalleled 5-year warranty ensures that your investment is safe and secure in the long term. We do not provide a one-size-fits-all product, but will analyze your unique application areas and industry needs and design detailed and comprehensive solutions. From military-civilian integration projects to petrochemical security systems, our approach combines excellent technology with industry insights. Ready to upgrade your security infrastructure? Consult us now and we will transform your vision into a high-performance and reliable security solution.

Exhibition

Product Packaging

Carton packaging

Wooden box packaging

Logistics Information

We provide flexible shipping method according to the quantity customers order, but we can help with sea or land transporta tion if you order mass quantity.

FAQ

1.Same price, best quality

The company has been a supplier of security equipment in China, we have served our suppliers for more than 20 years, we can provide your security equipment and most of the accessories you need, the same price, the best quality, I assure you.

2. What payment methods do you accept?

We can usually use T/T or L/C, and sometimes DP. (1) T/T, 30% deposit in advance, 70% balance to be paid before shipment, long-term customers can present the original copy of the bill of lading. (2) L/C, 100% irrevocable L/C without "soft clauses" from an internationally recognized bank is acceptable. Please ask the sales manager you work with for advice.

3. Which Incoterms 2010 clauses can you use?

We are a professional and well-established international player that can handle all INCOTERMS 2010, we usually work on conventional terms such as FOB, CFR, CIF, CIP, DAP.

4. How long is your price valid?

We are a gentle and friendly supplier and never seek excessive profits. Our prices remain basically stable throughout the year. We will only adjust prices based on the following two situations: (1) The US dollar exchange rate: the RMB exchange rate varies greatly according to international currency exchange rates; (2) The manufacturer/factory adjusts the machine price due to an increase in labor costs or raw material costs.

5. What logistics methods can you use for transportation?

We can transport security equipment by various means of transport. (1) 80% of our shipments will be by sea, to all major continents, such as Africa, South America, the Middle East. (2) To China's inland neighboring countries, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can transport by road or rail. (3) For urgently needed light spare parts, we can use international express services such as DHL, TNT, UPS, Fedex, etc.

6. How about the delivery time?

Normally, we can deliver normal products to our customers immediately within 15 days, if the mass production order equipment needs more than 30 days.

7.How soon can you respond to customer inquiries?

Our team is made up of a group of hardworking and energetic people, working around the clock to respond to customer inquiries and questions at any time. Most issues can be successfully resolved within 8 hours

8.Your kindly advice

If you still don't want to choose us after reading the details page, please let us know why. We are very willing to improve and do better to help more customers like you. Even a small suggestion will make a big difference.
