Name: 8Mp 4K Bullet Cctv Camera Outdoor Ip Security Cameras POE Power Supply, Night Vision, Motion Capture Network Camera
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-CM232M AF04ROS
Availability: InStock

Home Products HD Network Camera

8Mp 4K Bullet Cctv Camera Outdoor Ip Security Cameras POE Power Supply, Night Vision, Motion Capture Network Camera

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Newyaan
Model Number:	ZA-CM232M AF04ROS

Contact Now

Detailed Product Description

Warranty:	1 Year	Sensor:	CMOS
Function:	Waterproof / Weatherproof	Data Storage Options:	DVR
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM	Video Compression Format:	H.264
Special Features:	NIGHT VISION	Logo/graphic Design:	Laser Engraving, Dispensing
Operation System:	NO	Protocol:	NO
Audio Input/output:	NO, LINE IN1;AUDIO OUT 1	Keyword:	Network Camera
Working Environment:	-30°C To 60°C, Humidity <95%(non-condensing)	Night Vision:	Support Night Vision
Strong Light Suppression:	Support Strong Light Suppression	Penetrating Fog:	Support Fog-penetrating
3D Noise Reduction:	Support 3D Noise Reduction	Waterproof:	IP 67/IP66
Face Recognition:	Support Face Recognition

Product Features

Product Features (HD Network Camera)
1. Ultra-HD Image Quality & Intelligent Coding
* Supports multi-resolution outputs including 8MP (4K), 2K, and 1080P, paired with a 1/2.8" CMOS image sensor for delicate imagery.

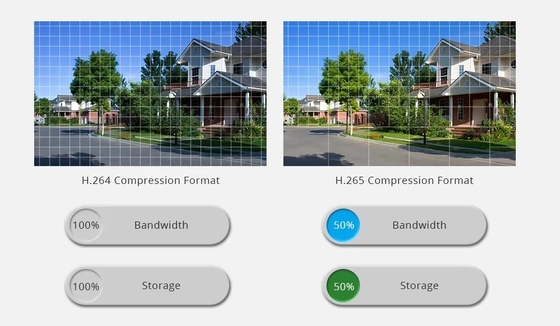

* Adopts Smart H.265/H.264+ video compression technology to reduce bitrate while maintaining (image quality), saving storage and bandwidth resources.
2. All-Weather Surveillance Capability

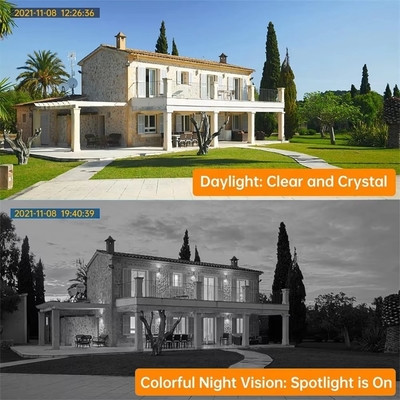

* Minimum illumination: 0.0028Lux@F1.2 (AGC ON) in color mode, 0 Lux (with IR) in B/W mode, combined with 70~100m infrared night vision range for clear monitoring day and night.
* Physical wide dynamic range, backlight compensation, highlight suppression, and defogging functions adapt to complex environments like strong light, backlight, and haze.
3. Intelligent Analysis & Multifunctional Integration
* Supports over 20 intelligent analysis functions, including (human/vehicle) region intrusion, cross-border detection, face capture, item left behind/guarding, etc., meeting security scene requirements.
* Built-in 3D digital noise reduction, corridor mode, and Region of Interest (ROI) coding to enhance monitoring efficiency.
4. Convenient Network & Power Supply Design
* Supports PoE (802.3af) and DC12V dual power supply, simplifying cabling; 10M/100M adaptive network port compatible with mainstream networks.
* Complies with ONVIF and GB/T 28181-2016 protocols for seamless integration with NVR and third-party monitoring platforms.
5. Audio-Video Interaction & Expansion Interfaces
* Two-way audio (1×LINE IN + 1×AUDIO OUT) supports real-time voice intercom and recording.
* 2 alarm input/output interfaces can (link) external devices (e.g., alarms, lights) to enhance security response.
6. Industrial-Grade Protection & Environmental Adaptability

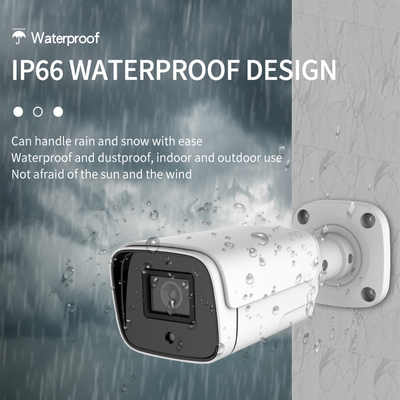

* IP67 waterproof and dustproof rating, operational at -30℃~60℃, suitable for outdoor harsh scenarios.
* Front-end storage support (requires external storage) ensures data security.
7. Easy Installation & Remote Management
* Plug-and-play (PoE power supply), supports remote real-time preview and playback on mobile (Eseecloud APP), tablet, and PC.
* Supports 8T large-capacity hard drive storage (with NVR) for long-term recording.

Product Paramenters

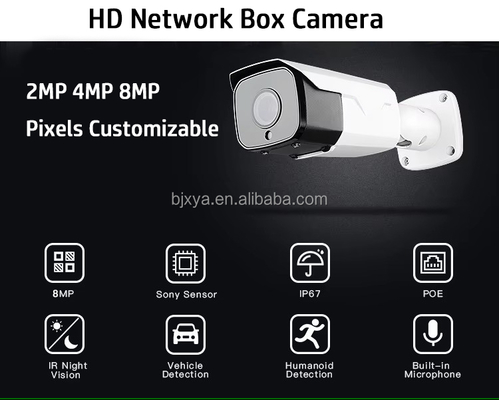

Product Name	2MP/4MP/8MP HD Network Bullet Camera	2MP/4MP/8MP HD Network Bullet Camera
Product Model	ZA-CM212MD-AF22R10	ZA-CM212MD-AF12R07
Image Sensor	1/2.8" CMOS	1/2.8" CMOS
Minimum Illumination	Color: 0.0028Lux@F1.2 AGC ON; B/W: 0 Lux with IR	Color: 0.0028Lux@F1.2 AGC ON; B/W: 0 Lux with IR
Lens	7-22mm @F1.6	2.8-12mm @F1.4
Day/Night Mode	Support	Support
Wide Dynamic Range	Physical Wide Dynamic	Physical Wide Dynamic
Backlight Compensation	Support	Support
Strong light suppression	Highlight Suppression	Highlight Suppression
Through fog	Defogging	Defogging
3D Digital Noise Reduction	Support	Support
Video Compression Format	Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG	Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG
Resolution	4K, 2K, 1080P, 720P, D1, CIF, 480x240	4K, 2K, 1080P, 720P, D1, CIF, 480×240
Main Stream Frame Rate	1080P/720P@(1~25fps)	1080P/720P@(1~25fps)
Sub-Stream Frame Rate	720P/D1/CIF @(1~25fps)	720P/D1/CIF @(1~25fps)
Third Stream Frame Rate	D1/CIF/480×240@(1~25fps)	D1/CIF/480x240@(1~25fps)
Audio Compression Format	G711A/U	G711A/U
Region of Interest (ROI)	Support	Support
Network Interface	1×RJ45, 10M/100M Adaptive	1×RJ45, 10M/100M Adaptive
Audio	1×LINE IN; 1×AUDIO OUT	1×LINE IN; 1×AUDIO OUT
Front-end Storage	Support	Support
RS485	/	/
Alarm Interface	2×ALARM IN; 2×ALARM OUT	2×ALARM IN; 2×ALARM OUT
Interface Protocol	ONVIF, GB-T/28181-2016	ONVIF, GB-T/28181-2016
Motion Detection	Support	Support
Corridor Mode	Support	Support
Intelligent Analysis	(Human/Vehicle) Region Intrusion/Entry/Exit, (Human/Vehicle) Cross-border Detection, Image Blur Detection, Scene Change Detection, Image Color Cast Detection, (Human/Vehicle) Counting over Line, Face Detection, Face Capture, Item Guarding, Item Left Behind, Heat Map, Crowd Density Detection, Personnel Trajectory	(Human/Vehicle) Region Intrusion/Entry/Exit, (Human/Vehicle) Cross-border Detection, Image Blur Detection, Scene Change Detection, Image Color Cast Detection, (Human/Vehicle) Counting over Line, Face Detection, Face Capture, Item Guarding, Item Left Behind, Heat Map, Crowd Density Detection, Personnel Trajectory
PoE Power Supply	Support	Support
Infrared Distance	70~100m	50~70m
Waterproof Rating	IP67	IP67
Power Supply	DC12V/PoE	DC12V/PoE
Actual Power	<6W	<6W
Power with IR On	<10W	<10W
Working Environment	-30℃~60℃, Humidity <95% (Non-condensing)	-30℃~60℃, Humidity <95% (Non-condensing)
Dimensions (mm)	99×188×86	99×188×86

Product Details

Application Areas

Certifications & Proven Performance:

Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.

Company Profile

As a National High - tech Enterprise, Tianjin Xinyaan Technology Co., Ltd. (Tianjin Zhongan Video Technology CO., LTD). integrates
R&D, manufacturing, sales, and services in
the security industry. Specializing in pan - tilt technology, we focus on advanced applications like radar detection and multi -
spectral recognition.
With 25 years of R&D experience, we lead in PTZ control, holding nearly 100 patents and over 120 software copyrights. Our
expertise in servo and gyro - stabilized imaging enables high - end, customized security products for extreme environments.
Our products range from explosion - proof cameras to integrated management platforms. Serving sectors like military - civilian
integration, petrochemical, and smart cities, we offer one - stop procurement.
Renowned for quality, we've won top honors:
* Awards: China’s Top 10 Security Brands (multiple categories) and the SPSE Golden Tripod Award.

* Certifications: ISO 9001, 14001, 45001, and military - civilian security enterprise qualification.

* Memberships: Key roles in industry associations.

Committed to tailored solutions, we're a global leader in intelligent pan - tilt systems.

Manufacturing Technique

Exhibition

Our Advantages

With 25 years of in - depth expertise in the security industry, Tianjin Xinyaan Technology Co., Ltd. is your trusted partner for high - quality yet cost - effective security solutions. Whether you require a single unit or an order of 100 pieces, our dedicated team is ready to craft a fully customized solution tailored precisely to your needs.

What sets us apart? Our unbeatable 5 - year warranty ensures long - term peace of mind, safeguarding your investment. We don't offer one - size - fits - all products; instead, we analyze your unique application field and industry requirements to design a detailed, comprehensive solution. From military - civilian integration projects to petrochemical security setups, our approach combines technical excellence with industry - specific insights.

Ready to elevate your security infrastructure? Send us an inquiry today, and let’s transform yourvision into a high - performance, reliable security solution.

Logistics Information

We provide flexible shipping method according to the quantity customers order, but we can help with sea or land transporta tion if you order mass quantity.

FAQ

1.Same price, best quality

The company has been a supplier of security equipment in China, we have served our suppliers for more than 20 years, we can provide your security equipment and most of the accessories you need, the same price, the best quality, I assure you.

2. What payment methods do you accept?

We can usually use T/T or L/C, and sometimes DP. (1) T/T, 30% deposit in advance, 70% balance to be paid before shipment, long-term customers can present the original copy of the bill of lading. (2) L/C, 100% irrevocable L/C without "soft clauses" from an internationally recognized bank is acceptable. Please ask the sales manager you work with for advice.

3. Which Incoterms 2010 clauses can you use?

We are a professional and well-established international player that can handle all INCOTERMS 2010, we usually work on
conventional terms such as FOB, CFR, CIF, CIP, DAP.

4. How long is your price valid?

We are a gentle and friendly supplier and never seek excessive profits. Our prices remain basically stable throughout the year. We will only adjust prices based on the following two situations: (1) The US dollar exchange rate: the RMB exchange rate varies greatly according to international currency exchange rates; (2) The manufacturer/factory adjusts the machine price due to an increase in labor costs or raw material costs.

5. What logistics methods can you use for transportation?

We can transport security equipment by various means of transport. (1) 80% of our shipments will be by sea, to all major
continents, such as Africa, South America, the Middle East. (2) To China's inland neighboring countries, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can transport by road or rail. (3) For urgently needed light spare parts, we can use international express services such as DHL, TNT, UPS, Fedex, etc.

6. How about the delivery time?

Normally, we can deliver normal products to our customers immediately within 15 days, if the mass production order equipment needs more than 30 days.

7.How soon can you respond to customer inquiries?

Our team is made up of a group of hardworking and energetic people, working around the clock to respond to customer inquiries and questions at any time. Most issues can be successfully resolved within 8 hours

8.Your kindly advice

If you still don't want to choose us after reading the details page, please let us know why. We are very willing to improve and do better to help more customers like you. Even a small suggestion will make a big difference.
