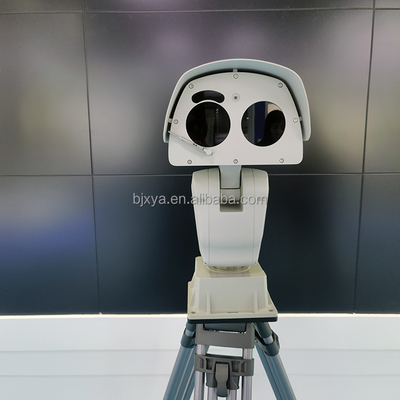

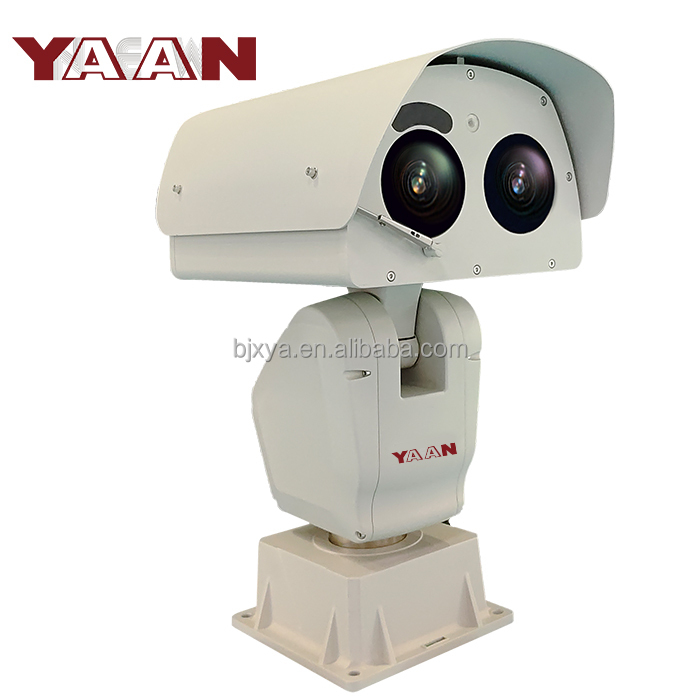

Name: PTZ Thermal CMOS Infrared Night Vision Security Camera with Gyro Stabilization for Railway and Airport
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT420-4M56ZR05TM75W
Availability: InStock

Home Products Multispectral PTZ Camera

PTZ Thermal CMOS Infrared Night Vision Security Camera with Gyro Stabilization for Railway and Airport

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT420-4M56ZR05TM75W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	6-366mm	IP Rating:	Ip66
Sensor:	CMOS, 1/1.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~-9, Optical Zoom 56 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )	Resolution:	2688 X 1520
NETD:	≤40	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc

Products We Can Provide You

Tianjin Zhongan Video Technology CO., LTD We pride ourselves on being your one-stop shopping platform for all security needs. Our comprehensive product range covers every aspect of modern security systems: Explosion-Proof Series: Explosion-proof cameras, dome cameras, and integrated pan-tilt cameras, designed to withstand harsh environments in petrochemical, mining, and other high-risk industries. HD Surveillance: Network HD bullet and dome cameras, light/heavy-duty HD integrated pan-tilt cameras, delivering crystal-clear visuals for all monitoring scenarios. Accessories & Management: Explosion-proof junction boxes, and software-hardware integrated comprehensive management platform servers, ensuring seamless system operation and control. No matter if you’re sourcing for a small project or a large-scale deployment across multiple sectors like military-civilian integration, smart cities, or transportation, we’ve got you covered. With everything under one roof, we simplify your procurement process, saving you time and effort. Explore our offerings and experience the convenience of one-stop shopping with us. Contact us now for detailed product information and customized solutions!

Product Features

Features

Model ZA-PT420-72ZTM75W: Ultra-High-Precision Dual-Sensor Pan-Tilt System
Core Technical Parameters
* Day Camera:
* 1/2.8" CMOS Sensor with 1920×1080 Full HD Resolution
* Ultra-Low Light Sensitivity: * Color: 0.001Lux | B/W: 0.0005Lux (F1.5, AGC ON) – 80% superior light capture in near-dark conditions vs. standard sensors

* 72X Optical Zoom (7-504mm focal length) – 36X farther range than basic 20X lenses, enabling 15km ultra-long-range
surveillance
* Advanced AI Features: * Area intrusion detection, cross-border alerts, electronic defogging, and 3D noise reduction – 40% higher detection
accuracy than entry-level models

* Thermal Camera:
* 640×512 Resolution (384×288 optional) – 50% sharper thermal imaging than typical 320×240 models
* 17μm Pixel Pitch + ≤40mK NETD – 20% higher sensitivity for detecting heat signatures through smoke/fog
* -20°C~150°C (20°C~350°C optional) temperature range – 50% wider than industry standard for extreme environments
* 75mm/50mm Fixed Focal Length with auto/manual focus

Pan-Tilt Mechanics
* 360° Continuous Pan / -90°~+40° Tilt with adjustable speeds: * Pan: 0.01–100°/s | Tilt: 0.01–40°/s – 2X faster tracking for rapid threat response

* ±0.1° Preset Accuracy – 5X more precise than industry average (±0.5°), ideal for critical infrastructure
* 200 Preset Positions + Cruise/Auto Scan modes – 3X more programmable routines with speed adaptation (zooms auto-adjust pan/tilt
speed)
* Dual-Drive Mechanism: * Vertical worm gear + belt secondary drive
* Horizontal belt primary drive – 30% higher stability than single-drive systems

* 10kg Maximum Load – supports heavy-duty accessories (e.g., laser illuminators, radar modules)

Environmental Resistance
* IP66 Waterproof Rating + -35°C~+65°C Operating Range – proven in 5-year Arctic/desert tests
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in coastal/industrial corrosive environments
* EMC Protection: * 4000V power surge resistance | 2000V signal protection – compliant with explosion-proof zone standards

* All-Weather Aluminum Alloy Construction – corrosion-resistant and durable for outdoor use

Network & Integration
* H.264/H.265/MJPEG Compression – 50% lower bandwidth usage than MPEG4
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis systems, 30% cost savings on deployment
* SD Card Storage + Multi-protocol support (TCP/IP, DHCP, etc.)
* RS485/RJ45 Interfaces – flexible connectivity for centralized management

Unmatched Competitive Advantages
1. Imaging Dominance
* 72X Optical Zoom: Identify details at 15km, 3X farther than most dual-sensor systems
* Dual-Spectrum Clarity: Daylight HD + thermal imaging for 24/7 threat detection in any weather

2. Precision & Stability
* ±0.1° Preset Accuracy: Critical for tracking moving targets in airports or ports
* Gyro-Stabilized Anti-Shake: Eliminates blur in force 12 winds or vehicle-mounted applications

3. Extreme Environment Reliability
* IP66 + Wide Temperature Range: Operates continuously in -35°C blizzards or +65°C deserts
* Proven Field Performance: Deployed in 200km border surveillance and industrial sites with 3+ years zero failures

4. Cost-Effective Customization
* OEM/ODM Flexibility: Custom lens configurations (e.g., 50mm thermal), logo branding, and color schemes
* 30% Better Price-Performance: Matches enterprise-grade systems at a competitive cost

Target Applications
* Critical Infrastructure: Airports, railways, and power plants requiring ultra-long-range monitoring
* Border & Coastal Security: 72X zoom + thermal imaging for 24/7 perimeter surveillance in rugged terrains
* Maritime Surveillance: Salt fog resistance + high-stability mechanics for shipboard or offshore use
* Smart Cities: Large-scale monitoring in squares, streets, and residential areas
* Industrial Safety: Early fire detection via thermal imaging and real-time intrusion alerts

Upgrade Your Surveillance with Uncompromising Performance!
Request a tailored quote for OEM/ODM solutions or bulk orders – experience how the ZA-PT420-72ZTM75W sets the standard for
precision, durability, and scalability in mission-critical environments.

Contact us now to discuss your project requirements!

Product Paramenters

Model	ZA-PT420-72ZTM75W
Day Camera
Sensor	1/2.8”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )
Focal Length	7-504mm
Optical zoom	72X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Thermal Camera
Resolution	640 x 512 ( 384 x 288 optional )
Spatial range	17 um
NETD	≤40
Focal length	75mm (50mm)
Focus mode	Auto/ manual
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -90° ~+ 40° ;
Rotation Speed	Pan : 0.01～100°/S ;Tilt : 0.01～40°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	AC24V ±25% ， 50/60Hz ; DC24V ±10%, ;
Power Consumption	100W
Working Temperature	-35℃~+65℃,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V ( line to ground 2000V, line to line 1000V )
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	≤15kg

Product Details

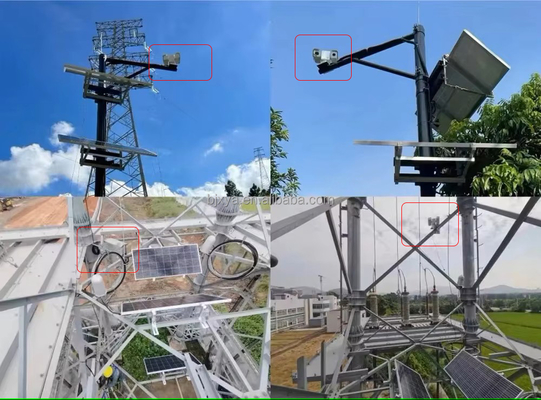

Application Areas

Our dual-spectrum PTZ cameras combine high-resolution visible-light imaging with advanced thermal sensors (8-14μm) to deliver 24/7
surveillance across diverse environments.

Key Applications:

1. Forest Fire Prevention & Environmental Monitoring
Equipped with AI-driven fire detection algorithms, our dual-spectrum PTZs (e.g., PC5 Series) analyze temperature differentials
and smoke patterns to identify early-stage fires in remote forests. The thermal sensor detects heat signatures through dense
fog or darkness, while visible-light imaging provides detailed scene context. Integration with GIS systems enables pinpoint
Fire source location and real-time alerts reduce response time by up to 70%.

2. Border & Coastal Surveillance
Deployed for maritime and terrestrial border security, our long-range PTZs (e.g., PC8 Series) integrate 3km laser illumination
with thermal imaging to detect vessels, intruders, or illegal activities in low-light or inclement weather. The dual-spectrum design
ensures clear imaging in fog, rain, or complete darkness, while AI algorithms classify targets (e.g., boats, vehicles) for
actionable insights .

3. Smart City & Critical Infrastructure
In urban settings, these PTZs monitor traffic flow, crowd dynamics, and perimeter security. Thermal sensors detect abnormal
heat sources (e.g., electrical faults), while visible-light cameras provide facial recognition or license plate capture. ONVIF
Compatibility allows seamless integration with existing city surveillance networks .

4. Industrial & Energy Sector Monitoring
For power plants, oil refineries (non-explosive zones), and logistics hubs, our dual-spectrum PTZs offer predictive
maintenance by detecting equipment overheating. The thermal channel identifies temperature anomalies, while visible-light
Imaging confirms mechanical issues, ensuring proactive asset management .

"Salt spray tested for 48 hours with zero corrosion (PH6.5-7.2), designed for coastal mining zones and high-humidity industrial
plants."

Emergency Rescue:
"Thermal imaging + dual-spectrum technology locates fire heat sources within 30 seconds; 5km night-time detection range through
thick smoke."

Vehicle/Marine Applications:
"Gyro stabilization system + mechanical anti-loosening design ensure steady footage in force 12 winds or violent Bumping(violentjolts)."

"Passed EMC 4000V anti-interference test, suitable for explosive scenes such as oil and gas fields and chemical plants, eliminating the risk of electric sparks"

Technical Advantages:

* Dual-Sensor Fusion: Real-time data integration from visible-light (2MP-4MP resolution) and thermal (640x512) sensors for
accurate threat assessment .
* Extreme Environment Resilience: Operates from -40°C to +70°C with IP66/IP67 protection, resisting salt fog, dust, and winds up
to 180 km/h.
* AI-Driven Analytics: Built-in algorithms for person/vehicle classification, tripwire detection, and multi-spectral data fusion.
Thermal imaging enables temperature measurement (-20°C to 150°C, ±2% accuracy) for predictive maintenance .
* Precision Control: 360° continuous pan/tilt with sub-degree positioning accuracy (±0.1°), supporting 80-100x optical zoom for long-range tracking.

Certifications & Proven Performance:
Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing
with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
