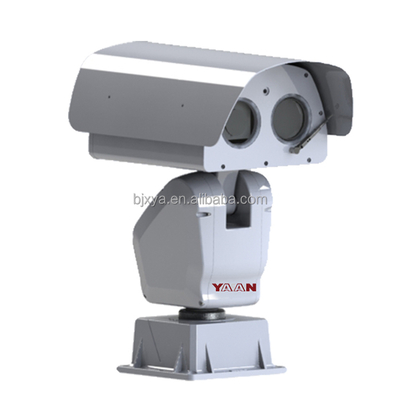

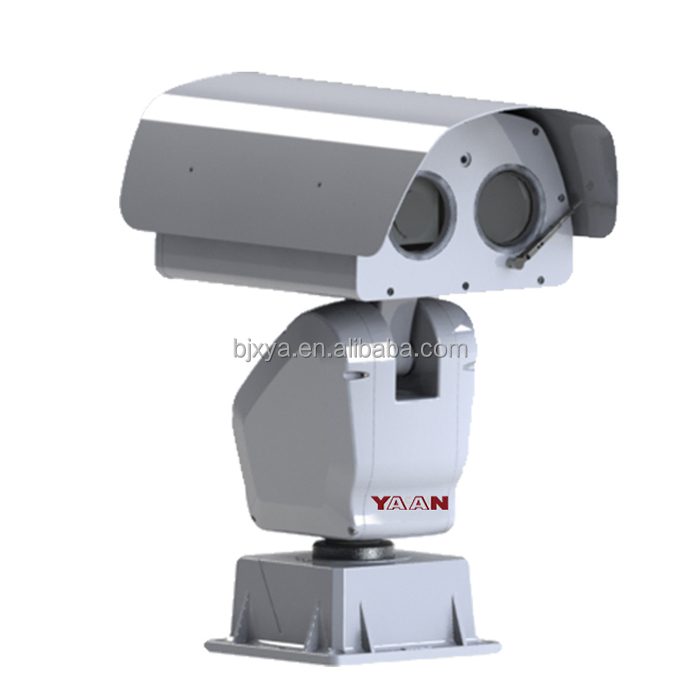

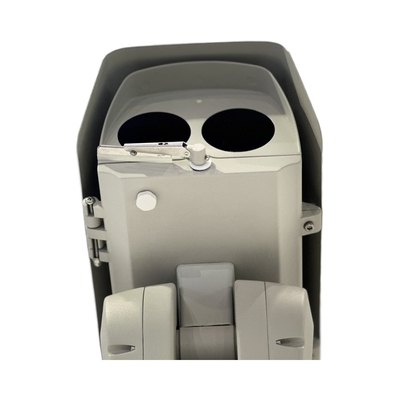

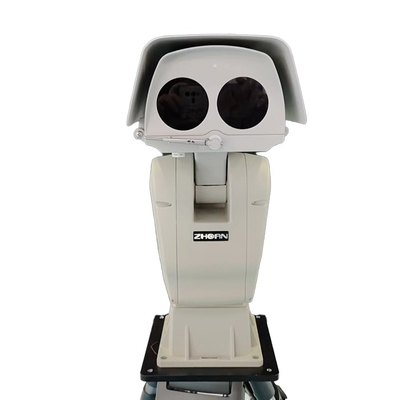

Name: Long Range Outdoor Network Camera 640*512 Thermal Imaging Resolution 10km Sensitivity with CMOS Sensor Night Vision Function
Brand: Beijing Zhuangyuanxiang Security Technology Co., Ltd.
SKU: ZA-PT410-37ZTM50W
Availability: InStock

Home Products Multispectral PTZ Camera

Long Range Outdoor Network Camera 640*512 Thermal Imaging Resolution 10km Sensitivity with CMOS Sensor Night Vision Function

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT410-37ZTM50W

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	2MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	6.5-143mm	IP Rating:	Ip66
Sensor:	CMOS, 1/2.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +90°~ 90°, Optical Zoom 82 Times	Product Name:	Ultra Long Range Camer
Min. Illumination:	Color : 0.0005Lux @(F1.5, AGC ON ); B/W : 0.0001Lux @(F1.5, AGC ON )	Resolution:	1920 X 1080
NETD:	≤40	Video Compression:	H.264 /H.265
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc	MOQ:	1
Shipping Time:	30 Day	Supply Type:	Ready-made Or Customized Solutions

Product Paramenters

Technical Parameters
The thermal security camera system stands out with its exceptional low-light performance (0.0005Lux color / 0.0001Lux B/W at F1.5, AGC ON),
enabling clear imaging in near-total darkness. Its 37X optical zoom (6.5-240mm focal length) delivers precise long-range
monitoring, while the pan-tilt offers rapid 100°/s horizontal rotation and ±0.1° preset accuracy for dynamic tracking. The system supports IP66 waterproofing and operates reliably in -35℃~+65℃ environments.

Product Features

* Vertical worm gear + belt secondary drive ensures high stability for smooth operation.
* Adaptive zoom technology automatically adjusts rotation speed based on zoom level, with horizontal speeds reaching 100°/s.
* High repeatability accuracy (±0.1°) and 200 preset positions enable precise multi-scene coverage.
* All-weather protection with IP66 rating, suitable for large-scale HD monitoring in harsh environments.
* Supports max. 10kg load, ideal for highways, railways, airports, ports, and urban surveillance scenarios.

Model	ZA-PT410-37ZTM50W
Day Camera
Sensor	1/2.8”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.0005Lux @(F1.5, AGC ON ); B/W : 0.0001Lux @(F1.5, AGC ON )
Focal Length	6.5-240mm
Optical zoom	37X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -90° ~+ 40° ;
Rotation Speed	Pan : 0.01～100°/S ;Tilt : 0.01～40°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	AC24V ±25% ， 50/60Hz ; DC24V ±10%, ;
Power Consumption	40W
Working Temperature	-35℃~+65℃,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V ( line to ground 2000V, line to line 1000V )
Salt fog resistance	PH 6.5～7.2，continuous spraying 48 hours
Weight	≤11kg

Products Description

Application Areas

Widely applied in security scenarios: night surveillance, fire prevention, personnel flow analysis,
border/military/road/square/factory monitoring, parking lots, and perimeter protection. Specialized uses cover railway lines,large venues, coastal/shipborne/airport coastal defense, petrochemical/natural gas sites, ports, vehicle-mounted systems, andshipboard monitoring.

Certifications & Proven Performance:

Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
