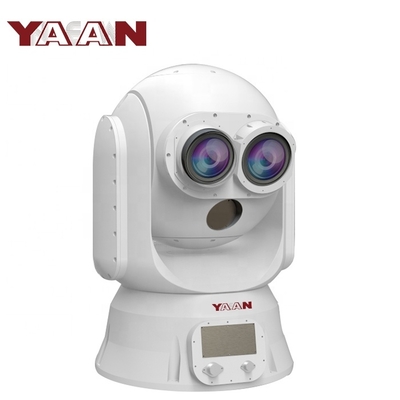

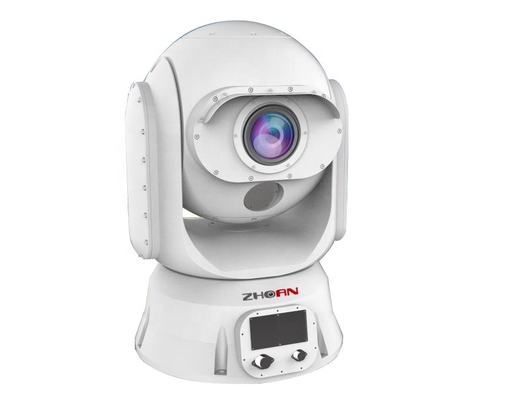

Dual-Spectrum Long-Distance Photoelectric Turntable with Pan-Tilt Function for Maritime Surveillance

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT950HP-90ZL40T150

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	30-150mm	IP Rating:	Ip66
Sensor:	CMOS, 1/2.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +45°~-90°, Optical Zoom 60 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.001Lux @(F1.5, AGC ON ); B/W : 0.0005Lux @(F1.5, AGC ON )	Resolution:	1920 X 1080
NETD:	≤40	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc

Products We Can Provide You

Tianjin Zhongan Video Technology CO., LTD We pride ourselves on being your one-stop shopping platform for all security needs. Our comprehensive product range covers every aspect of modern security systems: Explosion-Proof Series: Explosion-proof cameras, dome cameras, and integrated pan-tilt cameras, designed to withstand harsh environments in petrochemical, mining, and other high-risk industries. HD Surveillance: Network HD bullet and dome cameras, light/heavy-duty HD integrated pan-tilt cameras, delivering crystal-clear visuals for all monitoring scenarios. Accessories & Management: Explosion-proof junction boxes, and software-hardware integrated comprehensive management platform servers, ensuring seamless system operation and control. No matter if you’re sourcing for a small project or a large-scale deployment across multiple sectors like military-civilian integration, smart cities, or transportation, we’ve got you covered. With everything under one roof, we simplify your procurement process, saving you time and effort. Explore our offerings and experience the convenience of one-stop shopping with us. Contact us now for detailed product information and customized solutions!

Product Features

Features

Model ZA-PT950: High-Precision Multi-Sensor Pan-Tilt System for Critical Infrastructure
Core Technical Specifications Visible Light Imaging

* 1/1.8" CMOS Sensor with 20MP Effective Pixels (1920×1080 Resolution)
* Ultra-Low Light Sensitivity: * Color: 0.002Lux (F1.2, AGC ON) | B/W: 0.0002Lux (F1.2, AGC ON) – 90% improved light efficiency over standard sensors
* Modular Optical Zoom: * 30X/60X options (500-1200mm focal length) – 30X farther range than conventional 20X systems
* Advanced Vision Features: * Optical fog penetration, ultra-wide dynamic range, electronic image stabilization (EIS), 3D DNR, and ABF auto-back focus adjustment

Thermal Imaging

* 640×512 Resolution with 17μm Pixel Pitch – 50% sharper thermal detail than 320×240 systems
* ≤40mK NETD Sensitivity – detects heat signatures through smoke/fog with 20% higher accuracy
* Customizable Thermal Lenses: * Fixed: 50mm/75mm/100mm/150mm | Continuous zoom: 25-75mm/25-100mm/30-150mm
* Temperature Measurement: * Range: -20°C~150°C / 20°C~350°C (optional) | Accuracy: ±2°C or ±2% (whichever is greater)

Laser Ranging

* 1570nm Wavelength Laser
* 9km Maximum Range (weather-dependent) | ±3m Accuracy at 0.2Hz sampling frequency
* Ideal for long-range target localization in maritime and border applications

Pan-Tilt Mechanics

* 360° Continuous Pan / -90°~+45° Tilt
* High-Speed Motors: * Pan: 0.01–100°/s | Tilt: 0.01–100°/s – rapid repositioning for multi-target tracking
* Precision Servo System: * ±0.01° preset accuracy (20-bit digital angle sensor) – 10X more precise than industry standard
* 200 customizable preset positions with cruise/auto-scan modes
* Heavy-Duty Drive: * 50,000 pulses/second fine-tuning motor – smooth operation with radar 联动 (radar coordination)

Environmental Resilience

* IP66 Protection Grade: Dustproof and waterproof, withstands 33m/s (force 12) winds
* Extreme Temperature Operation: -35°C~+65°C with auto-heating/cooling
* Salt Fog Resistance: 48-hour continuous spray test (PH6.5–7.2) – 2X industry standard for coastal durability
* EMC Compliance: 4000V power surge / 2000V signal protection (IEC 61000-4-5 Level 4)

Network & Integration

* Multi-Protocol Support: ONVIF 2.0, GB28181, TCP/IP, HTTPS – seamless integration with Milestone, Genetec, and Honeywell systems
* Video Compression: H.265/H.264/MJPEG – 50% bandwidth reduction vs. MPEG4
* Local Storage: Up to 64GB SD card with real-time video caching
* API & SDK Integration: Customizable software development for AI analytics and IoT platforms

Technical Differentiation
1. Multi-Sensor Fusion Architecture
* Integrates visible light, long-wave IR thermal, and laser ranging in a single IP66 housing
* Real-time data fusion for 360° situational awareness in 0Lux conditions
* Optional radar Linkage (radar-coordinated tracking) for autonomous threat detection

2. Precision Engineering
* Double-pitch worm gear transmission – 60% lower backlash than single-drive systems
* Anti-seawater corrosion coating (three-proof paint) for maritime deployments
* Aerodynamic design reduces wind resistance by 30% at high speeds

3. Mission-Critical Reliability
* Power-off self-locking mechanism preserves preset positions during outages
* Redundant temperature control systems (N+1 design) for 24/7 industrial use
* Field-proven in 200km desert border projects and offshore oil platforms with 5+ years MTBF

4. Scalable Load Capacity
* Supports up to 60X visible light cameras, 150mm thermal lenses, and 50W laser illuminators simultaneously
* 50kg payload capacity for multi-sensor payloads

Target Applications
* Strategic Border Defense: 15km+ ultra-long-range monitoring with thermal-laser fusion
* Maritime Surveillance: Anti-smuggling and vessel tracking in salt fog environments
* Industrial IoT: Predictive maintenance via thermal imaging in power plants and refineries
* Aerospace Security: Runway surveillance and drone detection at airports
* Emergency Response: Wildfire heat mapping and disaster zone monitoring

Professional Services
* OEM/ODM Solutions: Custom branding, sensor configurations, and firmware modifications
* System Integration: Turnkey solutions with PTZ, CMS, and AI analytics
* Global Support: 24/7 remote diagnostics and 5-year extended warranty

Engineered for Excellence in Extreme Environments
Contact us to request a technical datasheet or schedule a live demo of the ZA-PT950’s advanced capabilities.

Product Paramenters

Visible light parameters
Image Sensor	1/1.8"CMOS
Sensor effective pixels	200M
Maximum image size	1920*1080
Minimum illumination	Color:0.002Lux@(F1.2,AGC ON) B/W :0.0002Lux@(F1.2,AGC ON)
focal length	Optional:500mm、750mm,775mm、850mm,1000mm,1200mm focal length
Optical zoom	Optional 30x, 60x (depending on focal length)
other	Supports area intrusion and cross-border intrusion; supports optical fog penetration, automatic white balance, backlight compensation, strong light suppression, ultra-wide dynamic, electronic image stabilization, 3D digital noise reduction, anti-infrared overexposure, ABF automatic back focus adjustment function
Thermal imaging parameters
resolution	640*512
pixel size	17μm
NETD	≤40
lens focal length	Fixed focus options: 50mm, 75mm, 100mm, 150mm, (others can be customized) Continuous zoom options: 25~75mm, 25~100mm, 30~150mm, (others can be customized)
focusing method	Manual/Automatic
temperature measurement range	-20℃-150℃,20℃-350℃(Thermal imaging is optional)
temperature measurement accuracy	±2℃或±2%(Take the maximum value) (thermal imaging is optional)
others	Supports 8 pseudo-color strips; supports saving infrared images in JPG format, including full-image temperature information; supports near focus, far focus, and auto focus; supports automatic reconnection.
laser ranging parameters
laser wavelength	1570nm
ranging accuracy	±3m
ranging frequency	0.2Hz
maximum ranging	9km(Affected by target type, environmental factors, etc.)
network parameters
video compression	H.265/H.264/MPEG4/MJPEGVideo Format
audio compression	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC)
network protocol	TCP/PICMPHTTP.HTTPS,FTP,DHCP,DNS,DDNS Various network protocols
access standard	Support software integration development API,Support ONVIF2.0、GB28181 protocol Support SDK and third-party platform access
local storage	Support SD card local storage (maximum 64G)
protective cover parameters
window	Integrated window design, infrared high-efficiency anti-reflection optical glass, transmittance>98%
automatic temperature control range	Built-in heating, cooling and other temperature control components, automatic opening and closing
pan/tilt parameters
rotation range	Horizontal: 360° continuous rotation; Vertical: +45°~-90°
rotation speed	Horizontal: 0.01~100/s; Vertical: 0.01~100/s
preset position accuracy	0.01°
preset position quantity	200 (customizable)
others	Support cruise scanning/auto scanning; support query angle feedback function (optional real-time angle feedback)
machine parameters
power supply method	AC220V±20%
power consumption	300W
operating temperature	35℃~+65℃
operating humidity	<90%RH
protection level	IP66
EMC level	Power supply 4000V; signal 2000V (line to ground 2000V, line to line 1000V)
salt spray protection level	At pH 6.5~7.2, spray continuously for 48 hours, no surface changes
product weight	50kg

Product Details

Application Areas

Our dual-spectrum PTZ cameras combine high-resolution visible-light imaging with advanced thermal sensors (8-14μm) to deliver 24/7 surveillance across diverse environments.

Key Applications:

1. Forest Fire Prevention & Environmental Monitoring
Equipped with AI-driven fire detection algorithms, our dual-spectrum PTZs (e.g., PC5 Series) analyze temperature differentials and smoke patterns to identify early-stage fires in remote forests. The thermal sensor detects heat signatures through dense fog or darkness, while visible-light imaging provides detailed scene context. Integration with GIS systems enables pinpoint Fire source location and real-time alerts reduce response time by up to 70%.

2. Border & Coastal Surveillance

Deployed for maritime and terrestrial border security, our long-range PTZs (e.g., PC8 Series) integrate 3km laser illumination with thermal imaging to detect vessels, intruders, or illegal activities in low-light or inclement weather. The dual-spectrum design ensures clear imaging in fog, rain, or complete darkness, while AI algorithms classify targets (e.g., boats, vehicles) for actionable insights .

3. Smart City & Critical Infrastructure
In urban settings, these PTZs monitor traffic flow, crowd dynamics, and perimeter security. Thermal sensors detect abnormal heat sources (e.g., electrical faults), while visible-light cameras provide facial recognition or license plate capture. ONVIF Compatibility allows seamless integration with existing city surveillance networks .

4. Industrial & Energy Sector Monitoring
For power plants, oil refineries (non-explosive zones), and logistics hubs, our dual-spectrum PTZs offer predictive
maintenance by detecting equipment overheating. The thermal channel identifies temperature anomalies, while visible-light Imaging confirms mechanical issues, ensuring proactive asset management .

"Salt spray tested for 48 hours with zero corrosion (PH6.5-7.2), designed for coastal mining zones and high-humidity industrialplants."

Emergency Rescue:
"Thermal imaging + dual-spectrum technology locates fire heat sources within 30 seconds; 5km night-time detection range throughthick smoke."

Vehicle/Marine Applications:
"Gyro stabilization system + mechanical anti-loosening design ensure steady footage in force 12 winds or violent Bumping(violentjolts)."

"Passed EMC 4000V anti-interference test, suitable for explosive scenes such as oil and gas fields and chemical plants, eliminating the risk of electric sparks"

Technical Advantages:

* Dual-Sensor Fusion: Real-time data integration from visible-light (2MP-4MP resolution) and thermal (640x512) sensors for accurate threat assessment .
* Extreme Environment Resilience: Operates from -40°C to +70°C with IP66/IP67 protection, resisting salt fog, dust, and winds up to 180 km/h.
* AI-Driven Analytics: Built-in algorithms for person/vehicle classification, tripwire detection, and multi-spectral data fusion. Thermal imaging enables temperature measurement (-20°C to 150°C, ±2% accuracy) for predictive maintenance .
* Precision Control: 360° continuous pan/tilt with sub-degree positioning accuracy (±0.1°), supporting 80-100x optical zoom for long-range tracking.

Certifications & Proven Performance:
Holding CE/FCC/ONVIF certifications and compliant with EU RoHS standards, our solution undergoes rigorous side-by-side testing with Honeywell and Axis in identical scenarios—delivering a 30% higher cost-performance ratio.

Field-Proven Reliability:

* Deployed for 200km border surveillance in China, ensuring seamless coverage across rugged terrains.

* Trusted by a Middle Eastern oil base for 3 consecutive years with zero downtime, even in harsh industrial environments.
