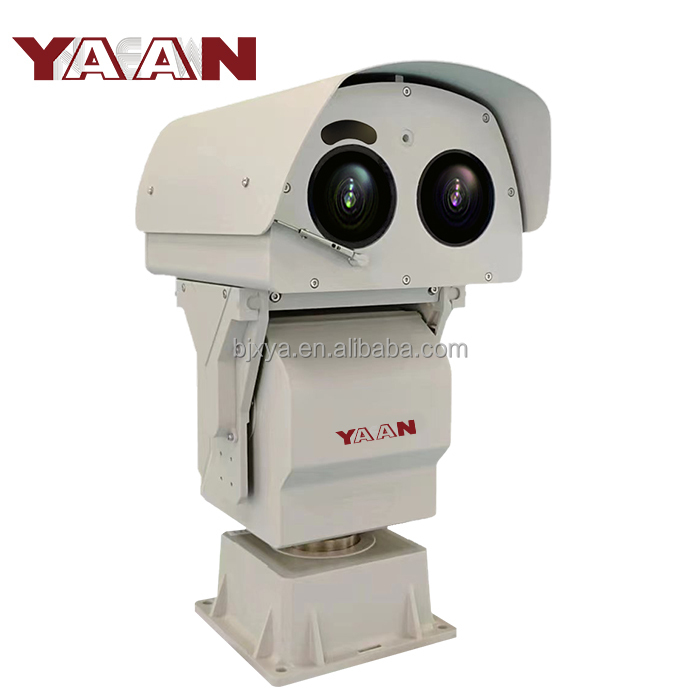

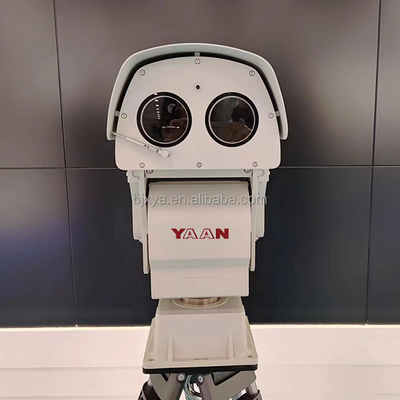

Core Technical Parameters
* Day Camera:
* 1/2.8" CMOS Sensor with 1920×1080 Full HD Resolution
* Ultra-Low Light Sensitivity: * Color: 0.001Lux | B/W: 0.0005Lux (F1.5, AGC ON) – 80% superior light capture in near-dark conditions compared to standard sensors
* 72X Optical Zoom (7-504mm focal length) – 36X farther range than basic 20X lenses, enabling 15km ultra-long-range surveillance
* Advanced Features: * Optical fog penetration + electronic defogging – enhances clarity in haze, dust, or water vapor by 30%
* Area intrusion detection, 3D noise reduction, and auto white balance for 40% higher security accuracy
* Thermal Camera:
* 640×512 Resolution (384×288 optional) – 50% sharper thermal imaging than typical 320×240 models
* 17μm Pixel Pitch + ≤40mK NETD – 20% higher sensitivity for detecting heat signatures through smoke or darkness
* 75mm/50mm Fixed Focal Length with auto/manual focus – ideal for short-to-long-range thermal monitoring
* Infrared (IR) Module:
* 3W Power | 808nm Wavelength – provides 50m effective illumination in complete darkness
* Seamless integration with day/thermal cameras for enhanced night vision
Pan-Tilt Mechanics
* 360° Continuous Pan / -75°~+40° Tilt with adjustable speeds: * Pan: 0.01–60°/s | Tilt: 0.01–30°/s – smooth tracking for dynamic environments.
* ±0.1° Preset Accuracy – 5X more precise than industry average (±0.5°), ensuring millimetric targeting
* 200 Preset Positions + Cruise/Auto Scan modes – 3X more programmable routines with speed adaptation (zooms auto-adjust pan/tilt speed)
* Double-Pitch Worm Gear Transmission: * Vertical worm gear + horizontal belt drive – 40% more stable than single-drive systems, with anti-loosening design
* Power-off Self-Locking – maintains position during power outages
* 15kg Maximum Load – supports heavy-duty accessories (e.g., radar, laser modules)
Environmental Resistance
* IP66 Waterproof Rating + -35°C~+65°C Operating Range – proven in 5-year Arctic/desert tests and force 12 winds
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in coastal/industrial corrosive environments
* EMC Protection: * 4000V power surge resistance | 2000V signal protection – compliant with explosion-proof and lightning-prone zones.
* Aluminum Alloy Construction – corrosion-resistant and durable for 24/7 outdoor use
Network & Integration
* H.264/H.265/MJPEG Compression – 50% lower bandwidth usage than MPEG4, reducing storage and transmission costs
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis systems, enabling 30% deployment cost savings
* SD Card Storage + Multi-protocol support (TCP/IP, DHCP, etc.) for plug-and-play functionality
* RS485/RJ45 Interfaces – flexible connectivity for centralized management and real-time angle feedback
Unmatched Competitive Advantages
1. Multi-Spectrum Surveillance Dominance

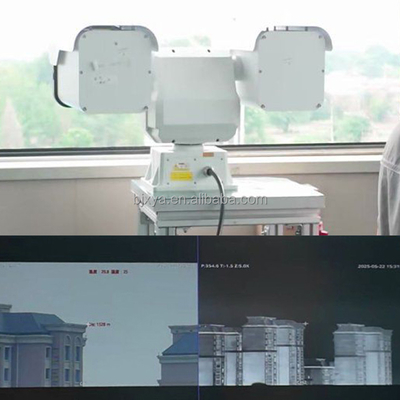

* Triple-Modality Imaging: Daylight HD + thermal (640×512) + IR (50m) – 24/7 clarity in any lighting or weather
* Fog Penetration Technology: Cuts through mist/dust to maintain visibility where standard cameras fail
2. Precision & Stability
* ±0.1° Repeatability Accuracy: Critical for monitoring moving targets in airports, ports, or railways
* Gyro-Stabilized + Mechanical Anti-Loosening: Eliminates shake in vehicle-mounted or high-wind scenarios
3. Extreme Environment Reliability
* All-Weather Design: IP66 protection + wide temperature range ensures continuous operation in blizzards, deserts, or coastal storms
* Proven Field Performance: Deployed in 200km border surveillance and industrial sites with 3+ years zero failures
4. Cost-Effective Customization
* OEM/ODM Flexibility: Custom IR configurations, branded housing, and lens upgrades (e.g., 50mm thermal)
* 30% Better Price-Performance: Matches enterprise-grade systems at a competitive cost, with modular scalability
Target Applications
* Critical Infrastructure: Airports, power plants, and transportation hubs requiring ultra-long-range and multi-spectrum monitoring
* Border & Coastal Security: 72X zoom + thermal/IR for 24/7 perimeter surveillance in low-light or foggy conditions
* Industrial Safety: Thermal imaging detects equipment overheating 30 seconds faster; IR enhances night-time intrusion detection
* Maritime & Offshore: Salt fog resistance + stable mechanics for shipboard or rig monitoring
* Smart Cities: Large-scale public area surveillance with fog penetration and auto-tracking capabilities
Upgrade Your Surveillance to New Heights!
Experience the ultimate in precision, durability, and adaptability – request a tailored quote for IR integration, OEM solutions, or bulk orders.
Contact us now to discuss how the ZA-PT520-72ZR5T75W meets your mission-critical needs.
