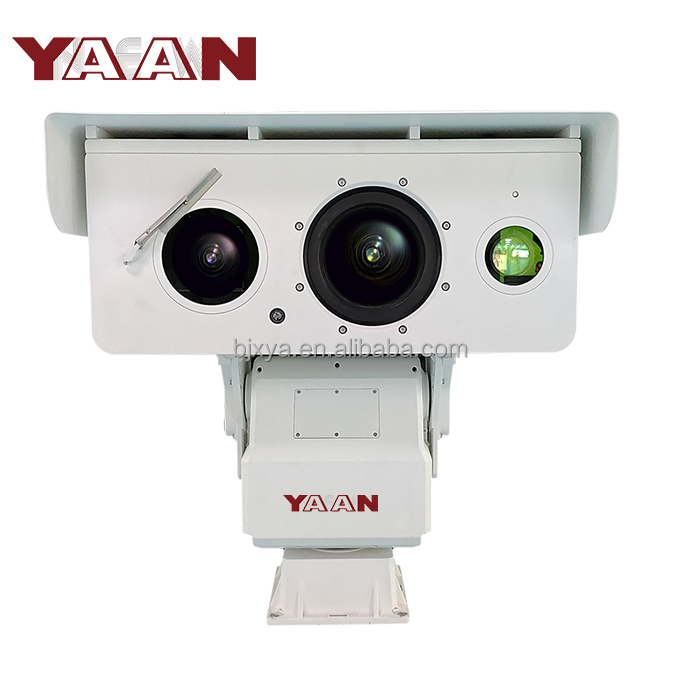

Long Range Thermal Camera Vehicle Mounted Surveillance Infrared Thermal Camera Cheap Ptz Camera

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	New Yaan
Model Number:	ZA-PT890-4M82ZL30TM225ZW

Contact Now

Detailed Product Description

Warranty:	5 Years	Pixels:	4MP
Video Compression Format:	H.265	Data Storage Options:	SD Card
Customized Support:	Online Technical Support, Customized Logo, OEM, ODM, Software Reengineering	Style:	Pan/Tilt Camera
Function:	Thermal Image, FULL COLOR, PAN-TILT, Two-way Audio, Alarm I/O, Abnormal Sound Detection, RESET, Built-in Mic, NIGHT VISION, Wide Angle, Waterproof / Weatherproof, Vandal-proof, Built-in Siren, One-way Audio	Special Features:	Vandal-proof, Motion Detection, NIGHT VISION, Human Motion Tracking, Face Detection, PAN-TILT, People Counting, Waterproof / Weatherproof, Built-in Siren, Temperature Measurement
Lens:	13.2-1080mm	IP Rating:	Ip66
Sensor:	CMOS, 1/1.8",CMOS	Material:	Aluminum Alloy
Viewing Angle:	Horizontal: 360° Continuous Rotation; Vertical: +45°~-45°, Optical Zoom 82 Times	Product Name:	Heavy-duty Intelligent Thermal Imaging Camera
Min. Illumination:	Color : 0.002Lux @(F1.5, AGC ON ); B/W : 0.0002Lux @(F1.5, AGC ON )	Resolution:	2688 X 1520
NETD:	≤40	Video Compression:	H.264 /H.265 /MPEG4 / MJPEG
Network Protocol:	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, Etc	Lens Focal Length:	25~225mm

Recommend Products

Product Details

Product Paramenters

Thermal security camera Features：

* 24/7 continuous long-range monitoring for the thermal security camera, equipped with high-sensitivity imaging capabilities to capture delicate, smooth details—ideal for critical surveillance scenarios.
* User-friendly design ensures easy installation and rapid deployment, with all modules fully customizable to fit specific needs, enhancing the versatility of this thermal security camera.
* Integrated high-precision pan-tilt mechanism: 360° continuous pan and wide-angle tilt, paired with universal variable-speed control, achieving blind-spot-free all-round monitoring. Adopting a worm gear transmission structure, it features low standby power consumption, power-off self-locking, strong wind resistance, and stable operation—key for reliable thermal security camera performance.
* Rugged IP66-rated enclosure crafted from high-strength aluminum alloy, filled with nitrogen for anti-salt spray, anti-corrosion, and anti-acid rain protection. Withstands harsh environments like marine areas and field high winds, making this thermal security camera durable in extreme conditions.
* Enhanced sensor sensitivity and advanced imaging tech: Supports day-night dual-use functionality, paired with continuous zoom thermal imaging technology for wide-range target search and identification. High-resolution UPFA detector with NETD ≤ 40mK ensures clear image capture in all light and temperature conditions.
* Intelligent features: Multi-position intelligent recognition autofocus adapts to scene changes for fast focusing; 200 preset positions (customizable) for systematic thermal image control. Integrates seamlessly with LRF, tracking modules, etc., via customizable communication protocols, boosting the thermal security camera’s surveillance efficiency.

Thermal Camera
* Customizable thermal pixel options: 384x288 / 640x512 / 1280x1024 pixels, tailored to diverse resolution needs of the thermal security camera.
* Flexible thermal lens selection: 150mm, 200mm, 20-60mm, 25-75mm, 22-110mm, 32-160mm, 40-200mm, 30-330mm—optimizing long-range monitoring for the thermal security camera.
* Advanced image enhancement: AGC automatic gain adjustment, 3D noise reduction, and SDE image detail enhancement for clearer thermal imaging, critical for the thermal security camera’s analysis accuracy.
* 8/15 adjustable pseudo-colors (black heat/white heat/iron red/rainbow, etc.) to adapt to different monitoring environments, enhancing visibility for the thermal security camera.
* Supports SDK & ONVIF protocols for seamless integration with existing systems, expanding the thermal security camera’s compatibility.

Laser Irradiator
* Integrated with the thermal security camera, this high-power laser source delivers ultra-long-distance effective irradiation (up to 4000 meters, customizable) with strong penetration, meeting large-range monitoring needs of the thermal security camera.
* Works in sync with the thermal security camera’s high-resolution imaging: enables long-distance high-definition details, providing robust support for post-image analysis—vital for the thermal security camera’s surveillance effectiveness.
* Intelligent control system: supports remote adjustment of beam angle and intensity, automatically adapting to diverse scenes to maximize the thermal security camera’s performance.
* Efficient heat dissipation and smart power management reduce energy consumption, prolonging service life and ensuring stable 24/7 operation alongside the thermal security camera. All laser modules are customizable to match specific thermal security camera requirements.

Model	ZA-P890-60ZL40TM150W
Day Camera
Sensor	1/2.8 ”，CMOS
Resolution	1920 x 1080
Min. Illumination	Color : 0.002Lux @(F1.2, AGC ON ); B/W : 0.0002Lux @(F1.2, AGC ON )
Focal Length	16.7-1000mm
Optical zoom	60X
Other function	Support area intrusion , cross- boarder intrusion , electronic defog , auto white balance , BLC , HLC , 3D noise reduction ,
Thermal Camera
Resolution	640 x 512 ( 384 x 288 optional )
Spatial range	17 um
NETD	≤40
Focal length	150mm
Focus mode	Auto/ manual
Laser
Power Consumption	25W
Wave Length	808nm
Effective Distance	4000 meters
Pan tilt
Rotation Angle	Pan : 360° continuous rotation ;Tilt: -45° ~ +45° ;
Rotation Speed	Pan : 0.01 ～15°/S ;Tilt : 0.01～7°/S ;
Preset Accuracy	±0.1°
Preset Position	200
Scan Mode	Cruise scan/auto scan
Angle Return	Support angle return by query command or real time angle return
Network
Video Compression	H.264 /H.265 /MPEG4 / MJPEG
Audio Compression	64kbps(G.711) 16kbps(G.272.1)/16kbps(G.276)/32-192kbps(G.MP2L2)/16-64kbps (AAC)
Network Protocol	TCP/IP, ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, etc
Access Standard	ONVIF, GB28181
Storage	Support SD card
General
Input Voltage	DC48V ±10%, ;
Power Consumption	250W
Operating Temperature	-35℃ ~ +65℃ ,
Humidity	<90%RH，
Waterproof	IP66
EMC	Power：4000V ； signal： 2000V (line to ground 2000V, line to line 1000V)
Salt fog resistance	PH 6.5～7.2 ，continuous spraying 48 hours
Weight	< 45kg

The Importance of Thermal Sensitivity (NETD) for Thermal PTZ Cameras

When choosing a thermal PTZ camera, NETD (Noise Equivalent Temperature Difference) is crucial. Lower NETD values mean the camera detects smaller temperature differences, enhancing image clarity and performance in harsh weather. Here’s a quick quality guide:
* <25mK: Excellent
* <40mK: Very Good
* <50mK: Good
* <60mK: Acceptable
* <80mK: Satisfactory
Thermal PTZ cameras with lower NETD (<25mK) produce more grayscale tones, enabling sharper details and better analytics performance. Cameras above 60mK yield grainier images, limited detection range, and more false alarms.

While resolution (e.g., 640×480) matters, NETD differentiates performance. A 640×480 thermal PTZ camera with <25mK NETD outperforms the same resolution model with <60mK, delivering clearer imagery and faster, more accurate temperature detection.Prioritize low NETD for optimal security and resource management in your thermal PTZ camera system.

How to Choose a Thermal Security Camera

When selecting a thermal security camera, prioritize detector resolution and thermal sensitivity alongside cost and quality.
Detector Resolution determines image detail:
* Low: ≤160×120 (19,600 pixels)
* Medium: 320×240 (76,800 pixels)
* High: 640×480 (307,200 pixels)
Higher pixel density delivers sharper, more detailed imagery for effective surveillance.
Thermal Sensitivity measures the camera’s ability to detect minimal temperature differences (e.g., 0.05°C). Lower values enable clearer differentiation between hot and cold surfaces, crucial for accurate thermal imaging in security applications.
Also ensure the camera’s temperature range is suitable (e.g., -4°F to 2,192°F) and check for essential features:
* Customizable false color palettes (8-16 options)
* Infrared image saving with full temperature data
* Auto-focus (near/far) and auto-reconnection capabilities
Prioritizing these factors in your thermal security camera selection ensures optimal performance for perimeter monitoring, low-light environments, and reliable threat detection.

Providing solutions：

(New ya’an) Key features and benefits of long-range PTZ cameras:
1. Extended Range:

· Long-range PTZ cameras have powerful zoom lenses (optical or digital) and sometimes laser or thermal imaging to achieve long-distance surveillance.
2. Versatile Monitoring:
·PTZ functionality allows for remote control of the camera's direction (pan and tilt) and zoom, enabling users to track objects, scan large areas, and focus on specific points of preset points.
3. Day/Night Operation:
· Long-range PTZ cameras incorporate infrared (IR) illumination or thermal imaging for effective monitoring in low light or complete darkness.
4. High Resolution:
· They often feature high-resolution sensors (e.g., 1080p or customized) to capture clear, detailed images, even at long distances.
5. Rugged Construction:
· Long-range PTZ cameras are typically built with durable, weatherproof housings to withstand harsh outdoor environments.

1). Long-range PTZ cameras are ideal for perimeter security, border surveillance, fire detection alarms, critical infrastructure protection, large outdoor areas like parking lots or ranches, and other scenarios requiring long-range monitoring.

2). When selecting a long-range PTZ camera, consider factors like the required detection, recognition, and identification ranges, environmental conditions, and specific application needs. Contact our long-range thermal imaging PTZ camera experts to provide youwith detailed solutions.

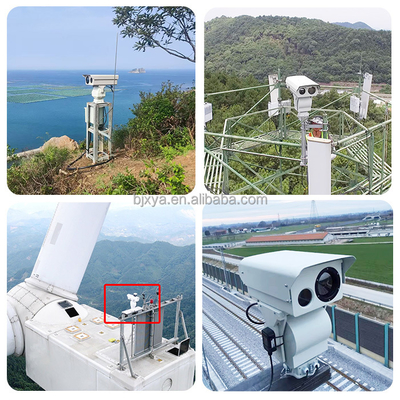

Application Areas

Company Profile

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a professional PTZ camera dealer, acting as an agent for a Chinese long-range night vision thermal imaging PTZ camera and radar drone detection camera factory with more than 20 years of history.
The laser cameras we produce have a night vision range from 100 meters to 10,000 meters.
The thermal imaging PTZ cameras we produce have a night vision range from 1 km to 100 km.
No matter what long-range thermal imaging radar night vision camera and detection drone project you need, we can provide you with detailed solutions.

Q: How does your company ensure high quality?

A: As an experienced long-range thermal imager and laser PTZ camera factory and trader, quality is always our top priority.
Starting from the raw material inspection, our quality inspectors will fully test the hardware waterproof performance and software circuit boards.
Each software circuit board will be inspected from short circuits and electronic component welding.
After assembly, our PTZ cameras will undergo a 48-hour +60°C high temperature aging test.
In addition, all our finished thermal imagers will undergo a -40° freezing test before shipping to all parts of the world.
At the same time, we can provide your security equipment and most of the accessories you need, the same price, the best quality, I guarantee you.

Q: Advantages of choosing us

A: At present, we have served more than 200 long-range thermal imaging PTZ camera projects in more than 100 countries and regions.
Europe, America, the Middle East, Australia, Africa, Asia, all have our sample projects.
If customers want to see the product and the demonstration of the product, we will give customers an online video live demonstration of thermal imaging and ultra-long-distance monitoring and detection for potential customers to visit.
Of course, we warmly welcome you to visit our factory directly to discuss the thermal imager needs in more detail.

Q: Does the company accept customization?

A: Of course. Our OEM and ODM partners include
many well-known international security brands.
We not only provide OEM logo services, but also can design new solutions for you.
Please contact our sales team to learn more about our reference partner list.

Q: How to order from us?

A: First, customers can consult our sales team to understand your main application areas and night vision range thermal imaging system and other ODM technical details, and then
communicate with you and give you a preliminary detailed solution.
Second, we will inform you of the R&D cycle and delivery time based on your order quantity.
Third, our sales representative will issue you a pro forma invoice with bank account information.
Fourth, your order will be placed with our production department for assembly and quality inspection and testing of the PTZ camera.
Fifth, we are a professional and mature international player that can handle all INCOTERMS 2010, and we usually work on regular terms such as FOB, CFR, CIF, CIP, DAP. We will contact you one week before the actual delivery date to discuss logistics.
Our logistics supports full-range transportation, including sea transportation, air transportation, express delivery (DHL, Fedex,TNT, etc.).
Our packaging, from reinforced cartons to reinforced wooden boxes, is the best of the best in the same category.

Q: What payment methods do you accept?

A: Usually we can use T/T or L/C, and sometimes
DP. (1) T/T, 30% deposit in advance, 70% balance before shipment, long-term customers can present the original copy of the bill of lading. (2) L/C, 100% irrevocable L/C without "soft terms" from an internationally recognized bank can be accepted. Please ask the sales manager you work with for advice.

Q: How is your after-sales customer service?

A: Actually, our after-sales service starts from
the shipment of the goods, not the arrival of the goods at the destination.
And our products have a warranty period of up to 5 years.
During the logistics transportation process, our sales manager will track your order.
Promptly feedback the latest information and provide you with solutions in case of any unexpected events.

Q: Are you a trading company or a manufacturer?

After the goods arrive and are put into use, if you need technical support requests, we will respond to you within 30 minutes.

Q: How soon can you respond to customer
inquiries?

A: Our team is made up of a group of hardworking and energetic people, working around the clock to respond to customer inquiries and questions at any time. Most issues can be successfully resolved within 8 hours.

Q: Are you a trading company or a manufacturer?

Dear, thank you for browsing our products.

We will provide you with high-quality products at very reasonable and competitive prices and provide excellent services. Welcome
to consult! Thank you!
