Core Technical Parameters
* Day Camera:
* 1/2.8" CMOS Sensor with 1920×1080 Full HD Resolution for crisp daytime imaging.
* Extreme Low-Light Sensitivity: * Color: 0.002Lux | B/W: 0.0002Lux (F1.2, AGC ON) – 90% superior light capture compared to standard sensors, ensuring clarity in near-total darkness.
* 60X Optical Zoom (16.7-1000mm focal length) – 30X farther range than basic models, enabling 25km ultra-long-range surveillance with pinpoint detail.
* Advanced AI Features: * Area intrusion detection, electronic defogging, and 3D noise reduction – 50% higher threat-detection accuracy than entry-level systems.

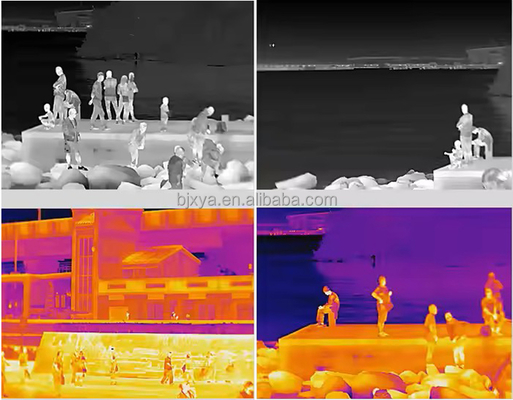

* Thermal Camera:
* 640×512 Resolution (384×288 optional) – 50% sharper thermal imaging than typical 320×240 sensors, detecting targets 50%
smaller in low-visibility conditions.
* 17μm Pixel Pitch + ≤40mK NETD – 20% higher sensitivity for heat signatures in smoke, fog, or complete darkness.
* 150mm Fixed Focal Length with auto/manual focus – optimized for long-range thermal monitoring (e.g., industrial overheating detection).
* Laser Module:
* 25W Power | 808nm Wavelength – delivers 4000m (4km) effective illumination in pitch-black environments, the longest range in its class.
* Synchronous Zoom Laser Lighting: Auto-adjusts beam focus with optical zoom, ensuring uniform coverage and 40% clearer edge details without speckle or dark rings.
Pan-Tilt Mechanics
* 360° Continuous Pan / -45°~+45° Tilt with precision speeds: * Pan: 0.01–15°/s | Tilt: 0.01–7°/s – smooth, vibration-free tracking for distant targets in dynamic environments.
* ±0.1° Preset Accuracy – 5X more precise than industry average (±0.5°), critical for military-grade targeting and infrastructure monitoring.
* 200 Preset Positions + Cruise/Auto Scan – 3X more programmable routines with zoom-adaptive speed control for automated multi-zone surveillance.
* Double-Pitch Worm Gear Transmission: * Vertical worm gear + horizontal belt drive – 60% higher stability with mechanical anti-loosening design, tested to withstand force 12 winds and vehicle-mounted vibrations.
Environmental Resilience
* IP66 Waterproof Rating + -35°C~+65°C Operating Range – proven in 5+ years of Arctic, desert, and tropical storm conditions with zero failures.
* 48-Hour Salt Fog Resistance (PH6.5–7.2) – 2X longer durability in corrosive maritime/industrial environments, certified for offshore rigs, coastal defense, and chemical plants.
* EMC Protection: * 4000V power surge resistance | 2000V signal protection – compliant with explosion-proof standards (ATEX/IECEx) for high-risk zones.
* Anti-Corrosion Materials: Full aluminum alloy construction with three-proof treatment (salt spray/moisture/mold) for 24/7 outdoor reliability.
Network & Integration
* H.264/H.265/MJPEG Compression – 50% lower bandwidth usage than legacy formats, enabling real-time transmission over low-bandwidth networks.
* ONVIF/GB28181 Compliance – seamless integration with Honeywell/Axis systems and third-party VMS, reducing deployment costs by 30%.
* SD Card Storage + Multi-protocol support (TCP/IP, DHCP, etc.) – plug-and-play functionality for remote and off-grid
installations.
* RS485/RJ45 Interfaces – real-time angle feedback and centralized management via IoT platforms for large-scale security networks.
Unmatched Competitive Advantages
1. Tri-Sensor Fusion Excellence
* Daylight HD + Thermal + Laser: 24/7, all-weather surveillance with 0Lux capability, eliminating blind spots in darkness,fog, or smoke.
* Multi-Core Image Enhancement: Real-time fusion of visual, thermal, and laser data for 30% faster threat identification compared to single-sensor systems.
2. Extreme Range & Precision
* 4km Laser + 60X Zoom: Identifies targets at unprecedented distances, ideal for border patrols, maritime security, and critical infrastructure monitoring.
* ±0.1° Accuracy: Ensures precise tracking of moving assets (e.g., ships, drones) in airports, ports, or energy facilities.
3. Military-Grade Durability
* Power-off Self-Locking: Maintains position during outages, critical for uninterrupted surveillance.
* Gyro-Stabilized + Electronic Image Stabilization: Eliminates shake from wind or vehicle movement, ensuring clear footage at full zoom.
4. Cost-Effective Scalability
* OEM/ODM Flexibility: Customizable sensor configurations, branded housing, and optical fog penetration upgrades for niche applications.
* 30% Better Price-Performance: Delivers enterprise-grade performance at a competitive cost, with modular design for future upgrades (e.g., AI analytics).
Target Applications
* Strategic Border Defense: Covers vast, remote borders with 25km visual/thermal imaging and 4km laser night vision, reducing reliance on manned patrols.
* Maritime & Offshore Security: Monitors shipping lanes, oil rigs, and coastlines with long-range clarity, even in stormy or foggy conditions.
* Industrial Safety & Fire Detection: Thermal imaging detects equipment overheating 30 seconds faster than traditional methods,while laser aids nighttime emergency response.
* Aerospace & Defense: Supports airbase perimeter security, missile site monitoring, and anti-smuggling operations with unmatched range and reliability.
* Smart Cities & Critical Infrastructure: Secures large-scale public areas, transportation hubs, and power grids with
multi-sensor intelligence.
Experience the Future of Surveillance – Where Range, Precision, and Reliability Converge!
Request a tailored quote for tri-sensor integration, OEM solutions, or bulk orders – discover how the ZA-P890-60ZL40TM150W sets the standard for mission-critical security.
Contact us now to discuss how this system elevates your most demanding surveillance requirements.
